AIR CONDITIONING: EVAPORATOR TEMPERATURE SENSOR: INSPECTION

EVAPORATOR TEMPERATURE SENSOR: INSPECTION

1. INSPECT EVAPORATOR TEMPERATURE SENSOR





(a) Measure the resistance according to the value(s) in the table below.

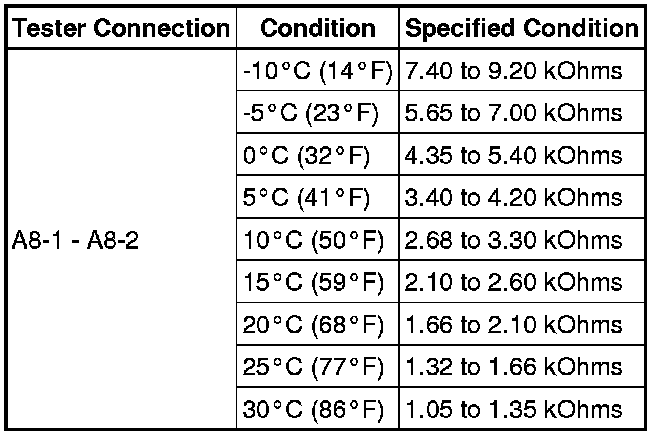

Standard resistance:





NOTICE:
- Even slightly touching the sensor may change the resistance value. Be sure to hold the connector of the sensor.
- When measuring, the sensor temperature must be almost the same as the ambient temperature.

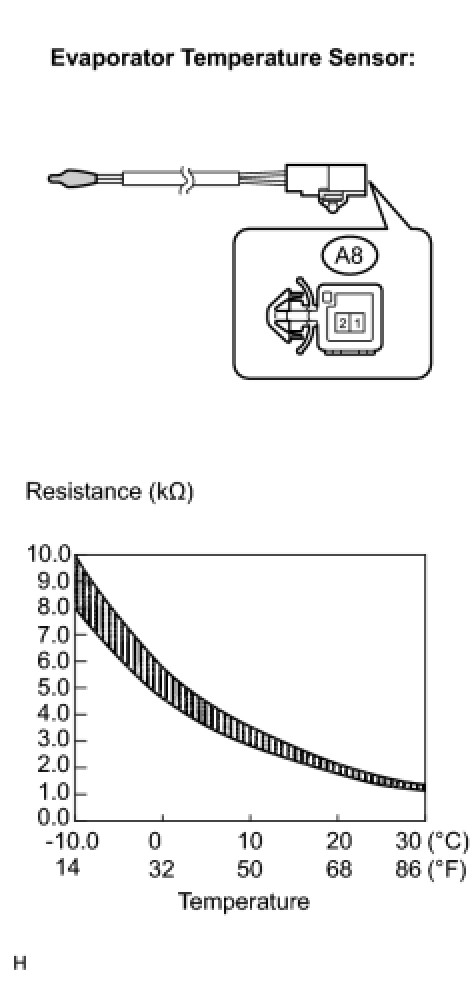

HINT: As the temperature increases, the resistance decreases (see the graph). If the resistance value is not as specified, replace the sensor.
