AUDIO / VISUAL: STEERING PAD SWITCH: INSTALLATION

AUDIO / VISUAL: STEERING PAD SWITCH: INSTALLATION

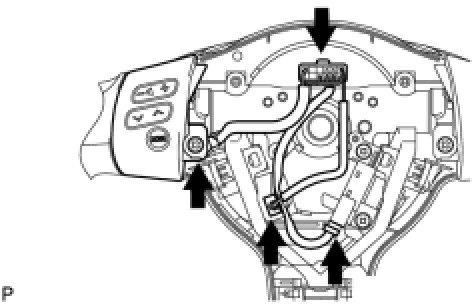

1. INSTALL STEERING PAD SWITCH
(a) Install the steering pad switch.
(b) Install the screw.
(c) Connect all connectors.
2. INSTALL STEERING PAD ASSEMBLY Installation
3. INSPECT STEERING PAD ASSEMBLY Installation
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION
(a) Perform initialization Testing and Inspection.
NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
