How To Proceed With Troubleshooting

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

The Techstream can be used in steps 4, 6, 8, and 9.
1. VEHICLE BROUGHT TO WORKSHOP
NEXT -- Continue to next step.
2. CUSTOMER PROBLEM ANALYSIS
(a) Confirm problem symptoms How to Proceed With Troubleshooting.
NEXT -- Continue to next step.
3. PASSENGER AIRBAG ON/OFF INDICATOR CHECK
NEXT -- Continue to next step.
4. CHECK DTCs (Present and Past DTCs)
(a) Check for DTCs.
Result:





B -- GO TO PROBLEM SYMPTOMS TABLE
A -- Continue to next step.
5. DTCs CHART
NEXT -- Continue to next step.
6. CIRCUIT INSPECTION
NEXT -- Continue to next step.
7. REPAIR
NEXT -- Continue to next step.
8. CLEAR DTCs (Present and Past DTCs)
(a) Clear DTCs.
NEXT -- Continue to next step.
9. CHECK DTCs (Present and Past DTCs)
(a) Check for DTCs.
Result:





B -- Go to step 5
A -- Continue to next step.
10. SYMPTOM SIMULATION

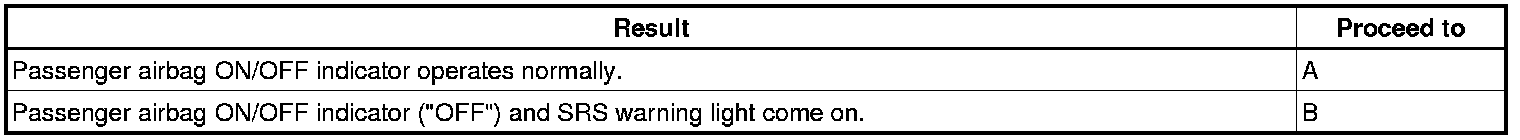

(a) Check the passenger airbag ON/OFF indicator condition.
Result:





B -- Go to step 5
A -- Continue to next step.
11. CONFIRMATION TEST
NEXT -- END
