Home >> Scion >> 2009 >> tC L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Specifications

Seat Belt Systems: Specifications









SERVICE SPECIFICATIONS: SEAT BELT: TORQUE SPECIFICATIONS

SEAT BELT: TORQUE SPECIFICATIONS

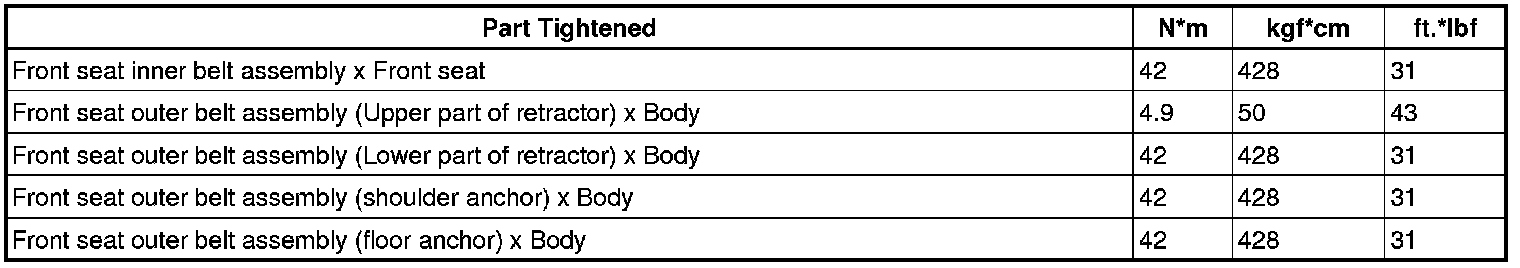

FRONT SEAT BELT:

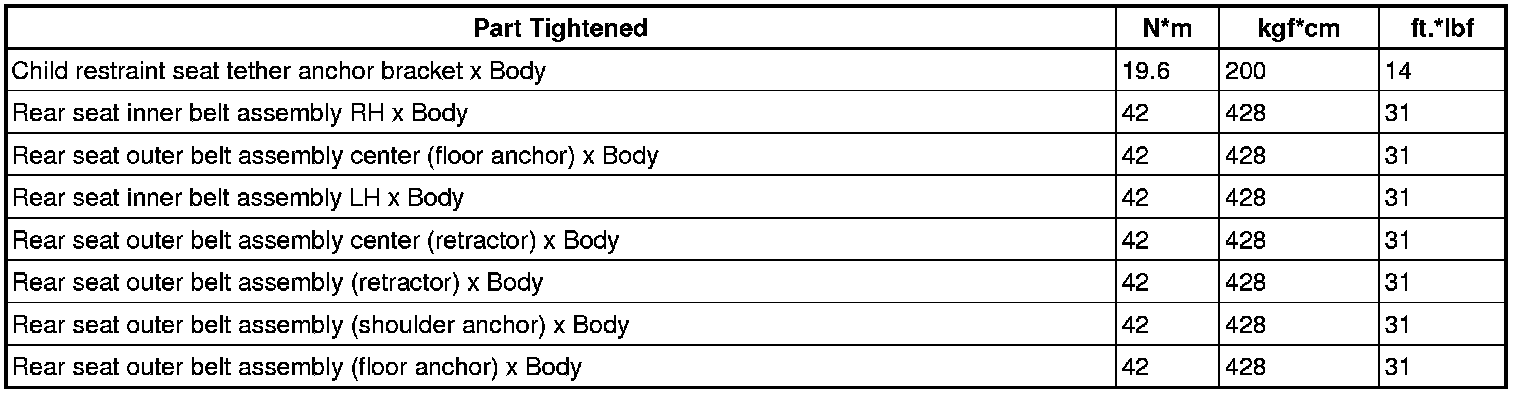

REAR SEAT BELT:
