Rear Seat Outer Belt Assembly

SEAT BELT: REAR SEAT OUTER BELT ASSEMBLY: INSPECTION

SEAT BELT: REAR SEAT OUTER BELT ASSEMBLY: INSPECTION





1. INSPECT REAR SEAT OUTER BELT ASSEMBLY
NOTICE: Do not disassemble the retractor.

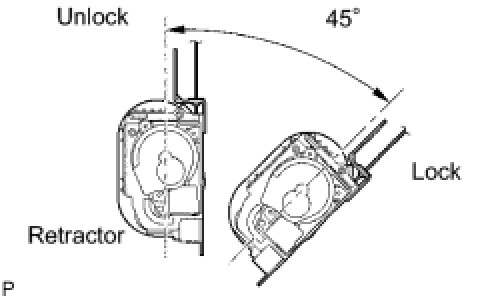

(a) When the inclination of the retractor is 15°or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.
If the operation is not as specified, replace the belt.
2. INSPECT REAR SEAT OUTER BELT ASSEMBLY CENTER
NOTICE: Do not disassemble the retractor.

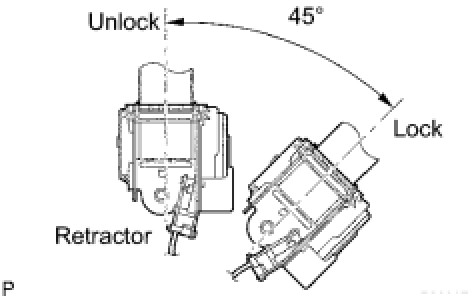

(a) When the inclination of the retractor is 15°or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.
If the operation is not as specified, replace the belt.
