SUPPLEMENTAL RESTRAINT SYSTEM: CURTAIN SHIELD AIRBAG ASSEMBLY: INSTALLATION

SUPPLEMENTAL RESTRAINT SYSTEM: CURTAIN SHIELD AIRBAG ASSEMBLY: INSTALLATION
CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it Service Precautions.

1. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY LH

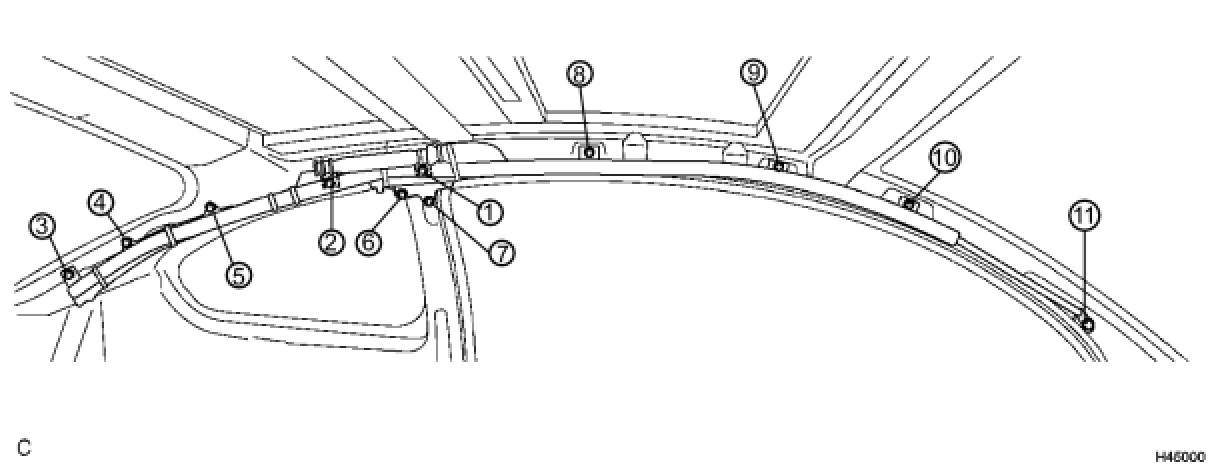

(a) Install the curtain shield airbag assembly with the 11 bolts.
Torque: 9.8 Nm (100 kgf-cm, 7 ft-lbf)
NOTICE: Do not twist the curtain shield airbag assembly when installing it.

(b) Connect the connector.
NOTICE: When handling the airbag connector, take care not to damage the airbag wire harness.

2. INSTALL ROOF HEADLINING ASSEMBLY
(a) Install the roof headlining assembly Installation.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION
(a) Perform initialization Testing and Inspection.
CAUTION: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

5. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
