Installation

SUPPLEMENTAL RESTRAINT SYSTEM: CENTER AIRBAG SENSOR ASSEMBLY: INSTALLATION

SUPPLEMENTAL RESTRAINT SYSTEM: CENTER AIRBAG SENSOR ASSEMBLY: INSTALLATION
CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it Service Precautions.





1. INSTALL CENTER AIRBAG SENSOR ASSEMBLY

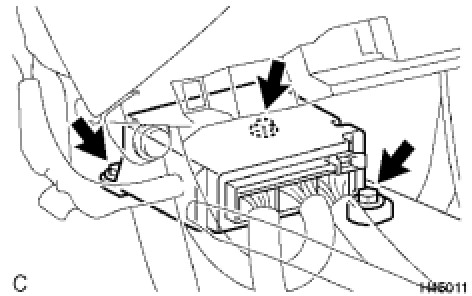

(a) Install the airbag sensor with the 3 bolts.
Torque: 17.5 Nm (179 kgf-cm, 13 ft-lbf)
NOTICE:
- If the airbag sensor has been dropped, or there are any cracks, dents or other defects in the case, bracket or connector, replace it with a new one.
- When installing the airbag sensor, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.

(b) Connect the airbag sensor connectors.
2. INSTALL REAR CONSOLE BOX ASSEMBLY Installation
3. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY Installation
4. REMOVE FRONT CONSOLE UPPER PANEL ASSEMBLY Installation
5. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (Manual Transaxle) Installation
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. PERFORM INITIALIZATION
(a) Perform initialization Testing and Inspection.
8. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
