Tail Lamp Relay: Testing and Inspection









LIGHTING: TAILLIGHT RELAY: INSPECTION

TAILLIGHT RELAY: INSPECTION

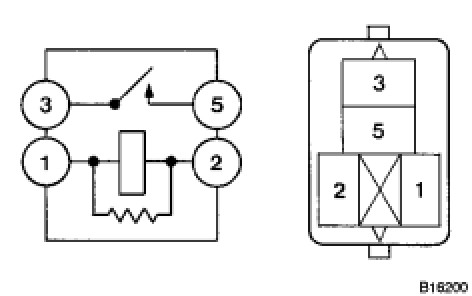

1. INSPECT TAILLIGHT RELAY
(a) Measure the resistance according to the value(s) in the table below.

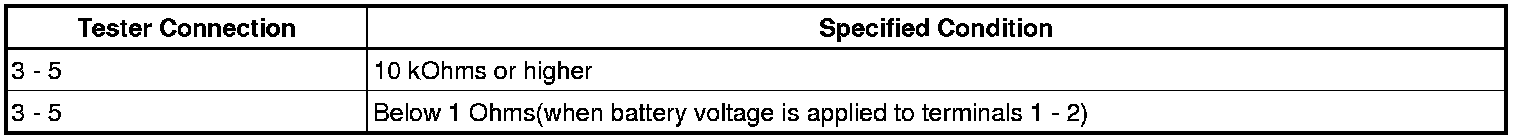

Standard resistance:
