Headlamp Relay: Testing and Inspection









LIGHTING: HEADLIGHT RELAY: INSPECTION

HEADLIGHT RELAY: INSPECTION

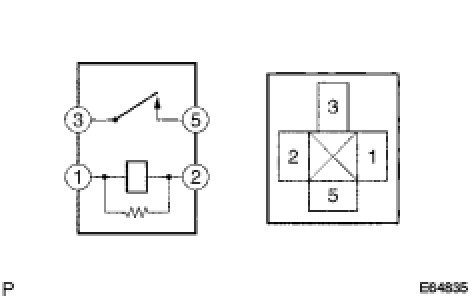

1. INSPECT HEADLIGHT RELAY
(a) Measure the resistance according to the value(s) in the table below.

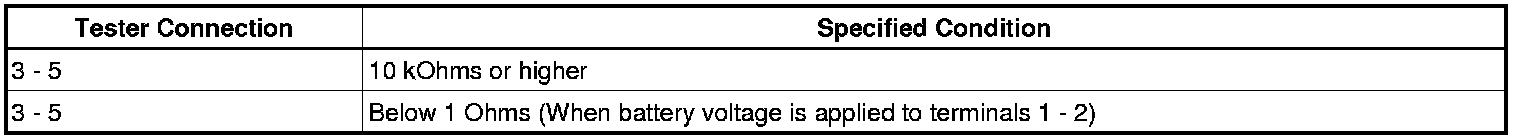

Standard resistance:
