Removal

2AZ-FE STARTING: IGNITION SWITCH: REMOVAL

2AZ-FE STARTING: IGNITION SWITCH: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE STEERING COLUMN COVER





(a) Remove the 2 screws and cover lower.
HINT: Turn the steering wheel to the right and left as necessary to remove the 2 screws and cover lower.

3. REMOVE IGNITION SWITCH ASSEMBLY

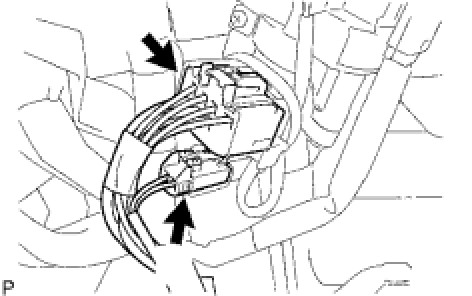

(a) Disconnect the ignition switch connector.
(b) Disconnect the unlock warning switch connector.

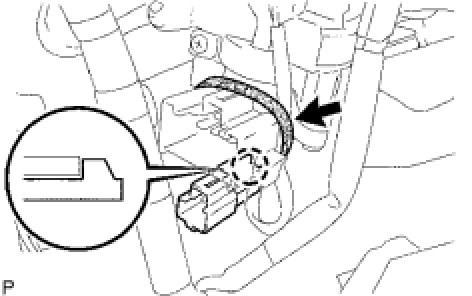

(c) Remove the cable tie.
(d) Using a small screwdriver, disconnect the claw fitting, and then remove the connector of the unlock warning switch.

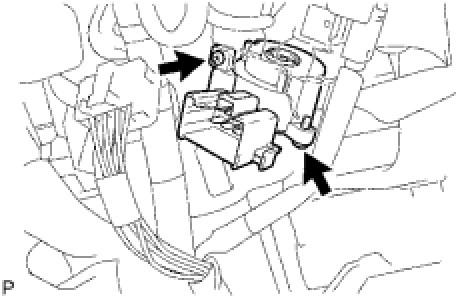

(e) Remove the 2 screws and ignition switch.

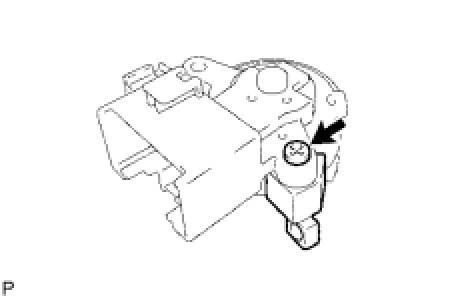

(f) Remove the screw and lock stopper.
