Ignition Relay No. 2

2AZ-FE ENGINE CONTROL SYSTEM: IGNITION RELAY NO. 2: ON-VEHICLE INSPECTION

IGNITION RELAY NO. 2: ON-VEHICLE INSPECTION

1. REMOVE IG2 RELAY (Marking: IG2)
(a) Remove the engine room relay block cover.
(b) Remove the IG2 relay from the engine room relay block.
2. INSPECT IG2 RELAY

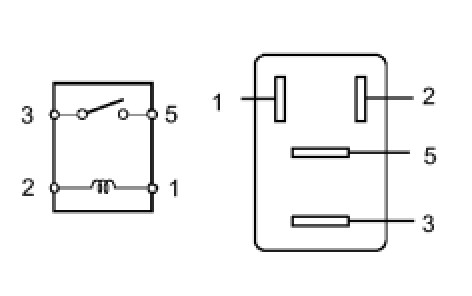

(a) Measure the EFI relay resistance.

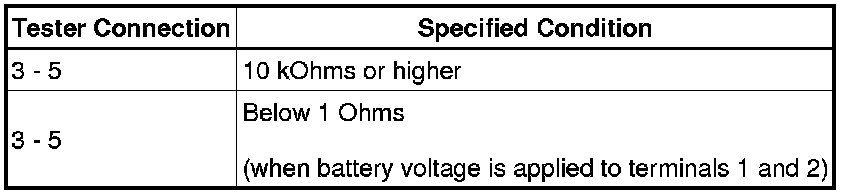

Standard resistance:





If the result is not as specified, replace the relay.
3. INSTALL IG2 RELAY
