2AZ-FE FUEL: FUEL TANK: REASSEMBLY

2AZ-FE FUEL: FUEL TANK: REASSEMBLY

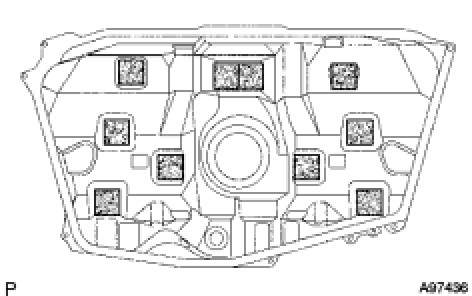

1. INSTALL NO. 1 FUEL TANK CUSHION

(a) Install 10 new fuel tank cushions onto the fuel tank as shown in the illustration.

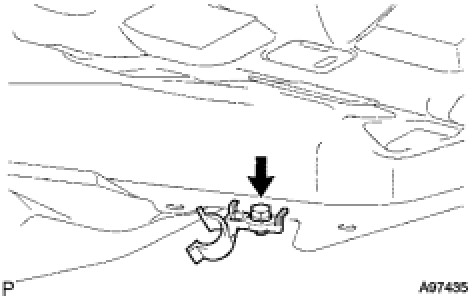

2. INSTALL NO. 4 FUEL TUBE CLAMP

(a) Install the fuel tube clamp with the bolt.
Torque: 6.0 Nm (60 kgf-cm, 53 in-lbf)

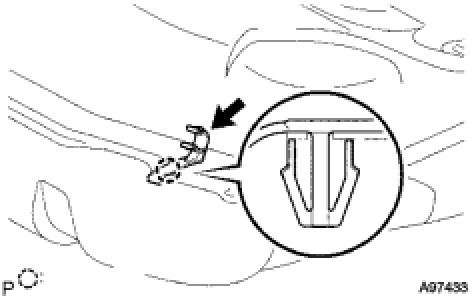

3. INSTALL NO. 3 FUEL TUBE CLAMP

(a) Align the clip positions, then install the fuel tube clamp.

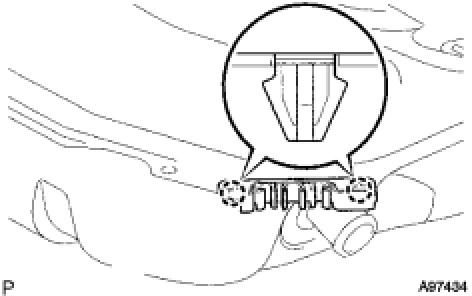

4. INSTALL TANK SUCTION TUBE SUPPORT

(a) Align the clip position, then install the tank suction tube support.

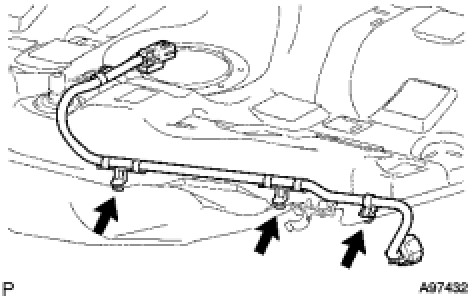

5. INSTALL NO. 3 FLOOR WIRE

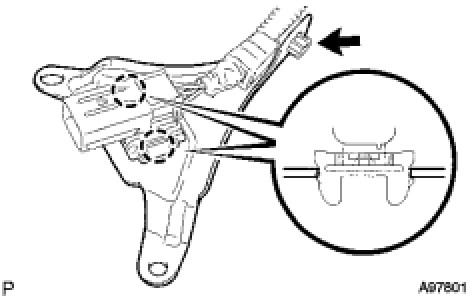

(a) Align the claws positions, then install the fuel tank protector plate.
(b) Install the wire harness clamp.

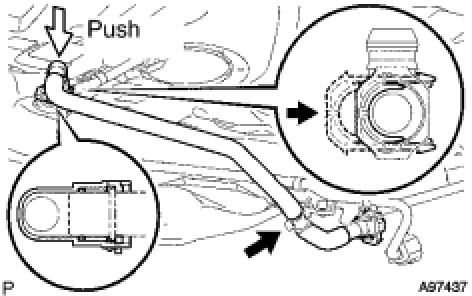

(a) Align the hose connector with the pipe, then push in the hose connector until it comes into contact with the seat to connect the fuel tank vent hose to the pipe. Then push the retainer up until to the claws lock.
(b) Install the hose into the hose clamp.
NOTICE:
- Check that there are no scratches or foreign objects around the connected part of the fuel tube connector and pipe before performing this work.
- After connecting the fuel tank vent hose, check that the fuel tank vent hose is securely connected by pulling the hose connector and pipe.

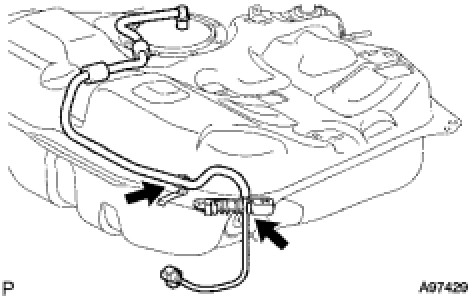

7. INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY

(a) Fit the fuel tank main tube into the fuel tube clamp and tank suction tube support.
