Removal

2AZ-FE FUEL: FUEL PRESSURE PULSATION DAMPER: REMOVAL

2AZ-FE FUEL: FUEL PRESSURE PULSATION DAMPER: REMOVAL

1. DISCHARGE FUEL SYSTEM PRESSURE Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
3. REMOVE ENGINE COVER SUB-ASSEMBLY Removal
4. REMOVE AIR CLEANER CAP SUB-ASSEMBLY Removal
5. DISCONNECT FUEL MAIN TUBE Removal
6. REMOVE FUEL PRESSURE PULSATION DAMPER ASSEMBLY

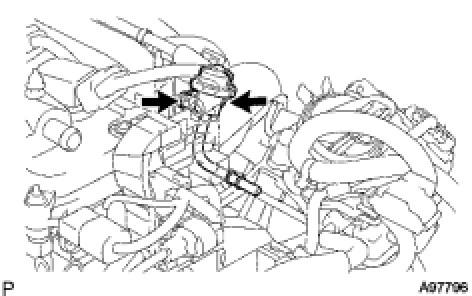

(a) Remove the 2 bolts, then remove the fuel pulsation damper.
