2AZ-FE EMISSION CONTROL: PCV VALVE: INSTALLATION

2AZ-FE EMISSION CONTROL: PCV VALVE: INSTALLATION

1. INSTALL VENTILATION VALVE SUB-ASSEMBLY





(a) Apply adhesive to 2 or 3 threads of the ventilation valve.
Adhesive:
Part No. 08833-00070, THREE BOND 1342 or equivalent

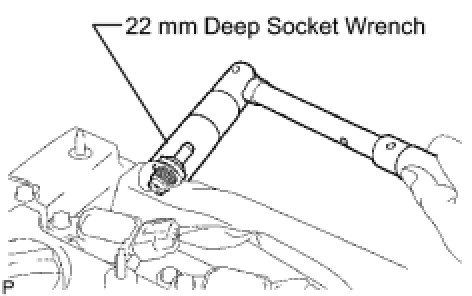

(b) Using a 22 mm deep socket wrench, install the ventilation valve.
Torque: 19 Nm (194 kgf-cm, 14 ft-lbf)
2. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation
3. CHECK FOR ENGINE OIL LEAKS
