Data List / Active List

2AZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: DATA LIST / ACTIVE TEST

DATA LIST / ACTIVE TEST

1. DATA LIST
HINT: By reading the Data List displayed on the Techstream, you can check values, including those of the switches, sensors, and actuators, without removing any parts. Reading the Data List as the first step in troubleshooting is one method of shortening diagnostic time.
NOTICE: In the table below, the values listed under Normal Conditions are for reference only. Do not depend solely on these values when determining whether or not a part is faulty.

(a) Warm up the engine.
(b) Turn the ignition switch off.
(c) Connect the Techstream to the DLC3.
(d) Turn the ignition switch to the ON position.
(e) Turn the Techstream on.
(f) If using the Techstream, enter the following menus: Powertrain / Engine and ECT / Data List.

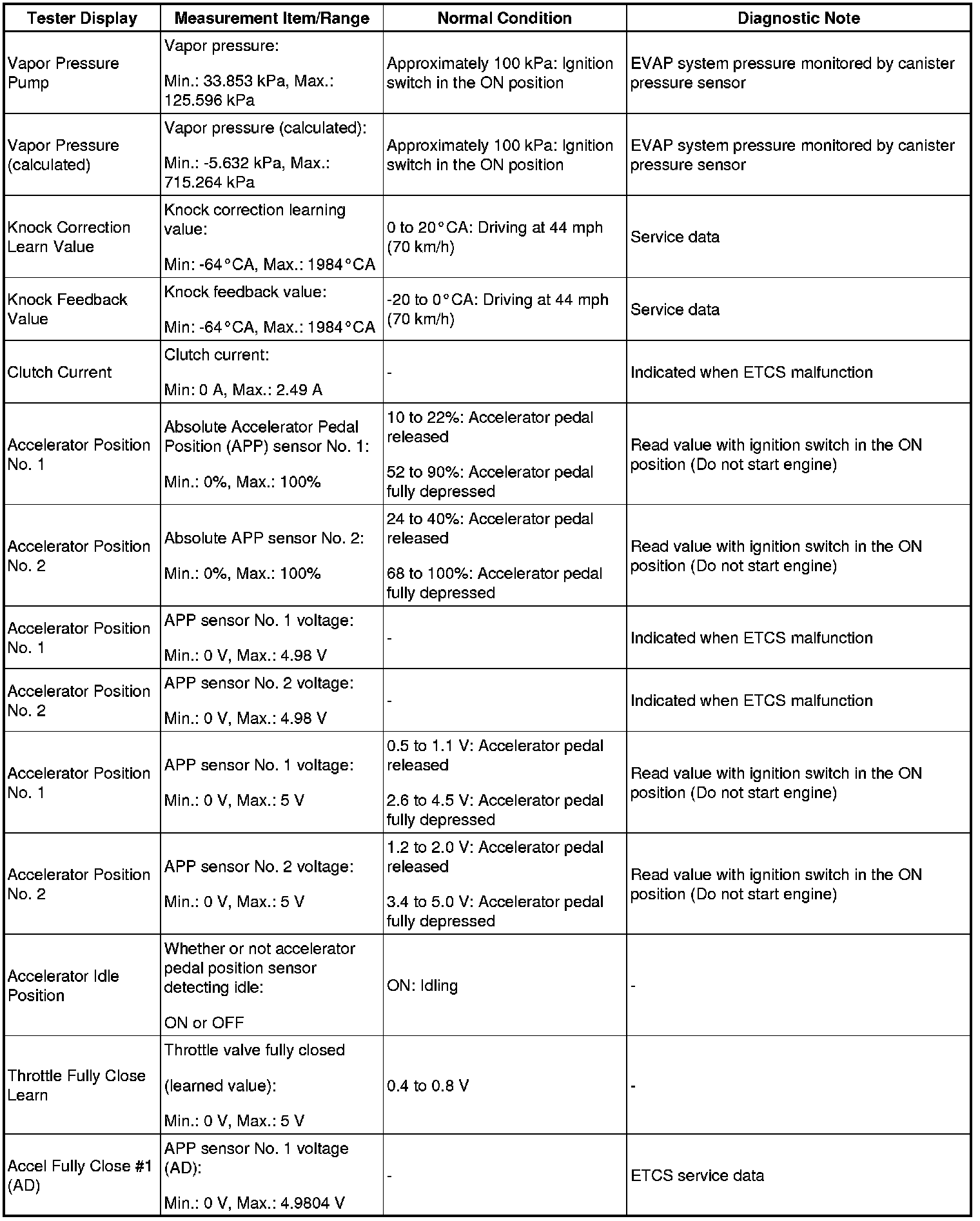

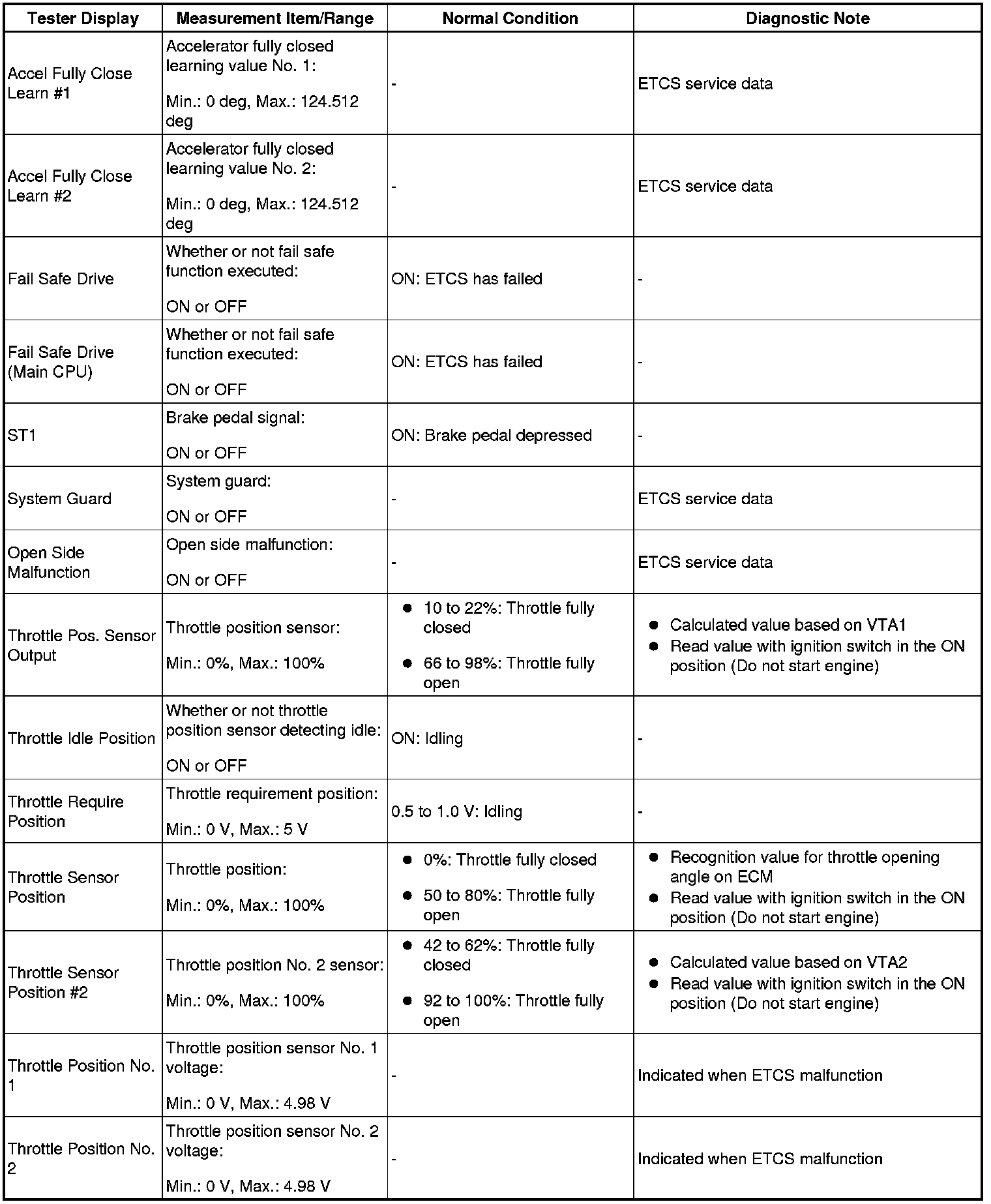

(g) Check the values by referring to the table below.

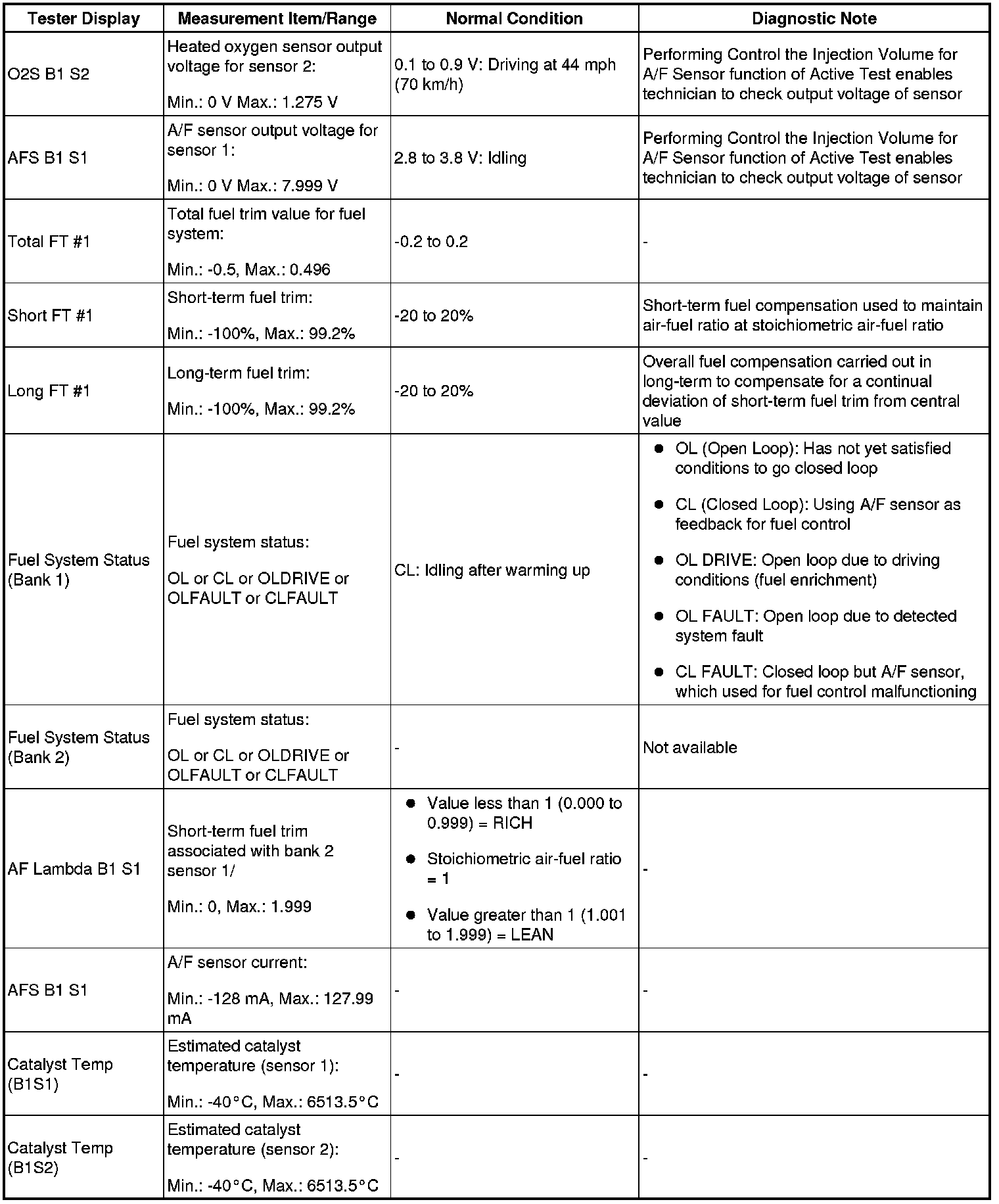

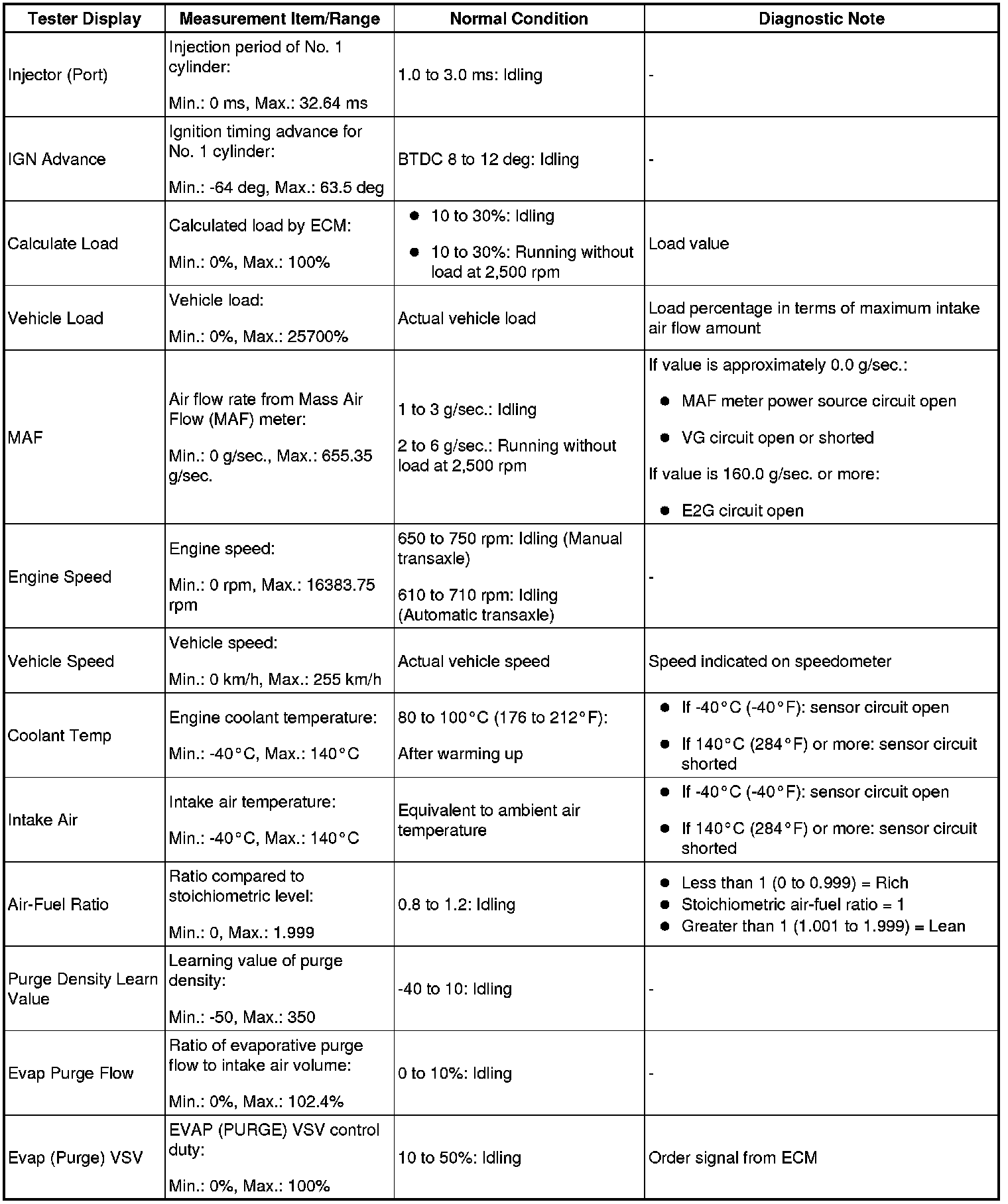

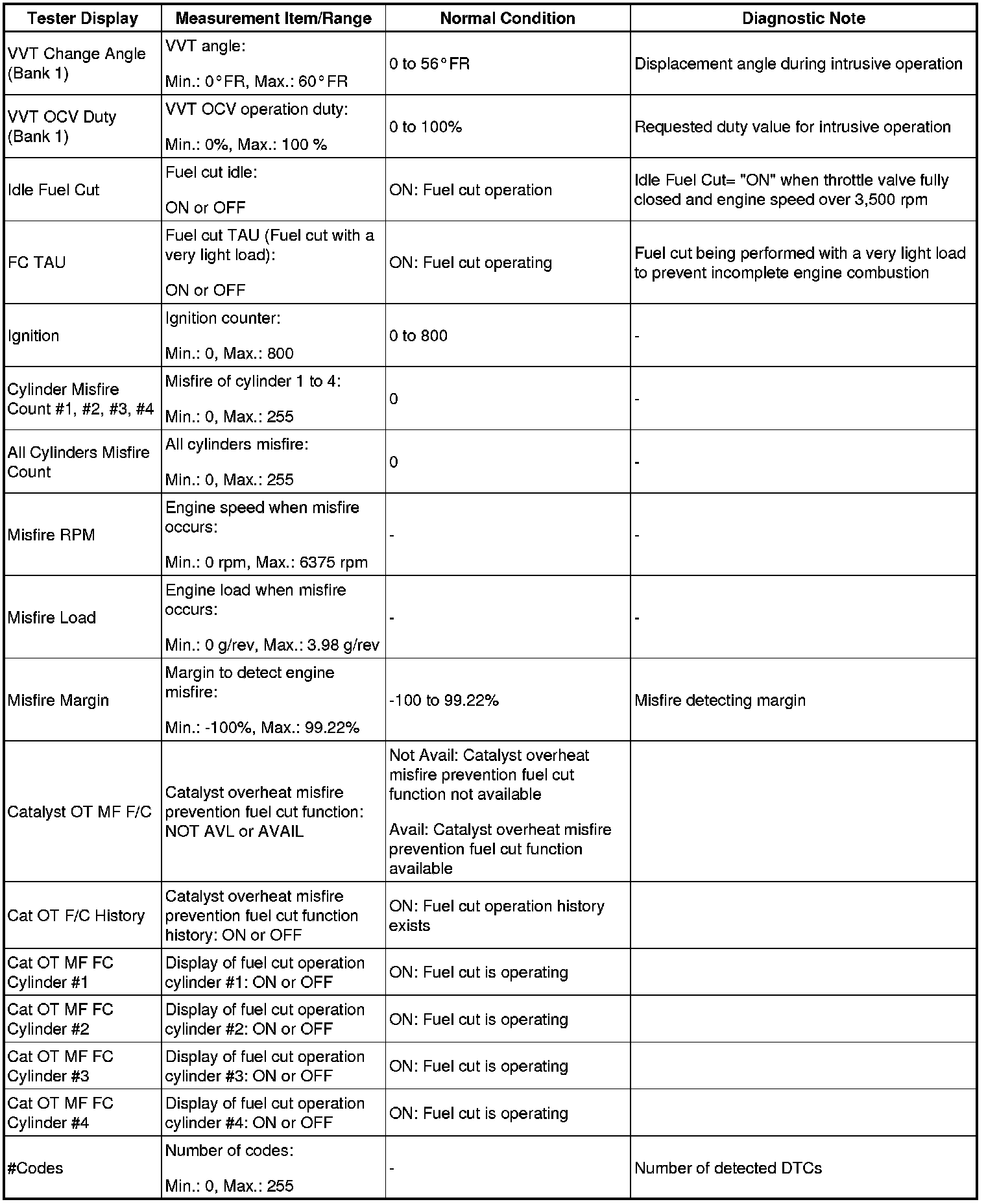

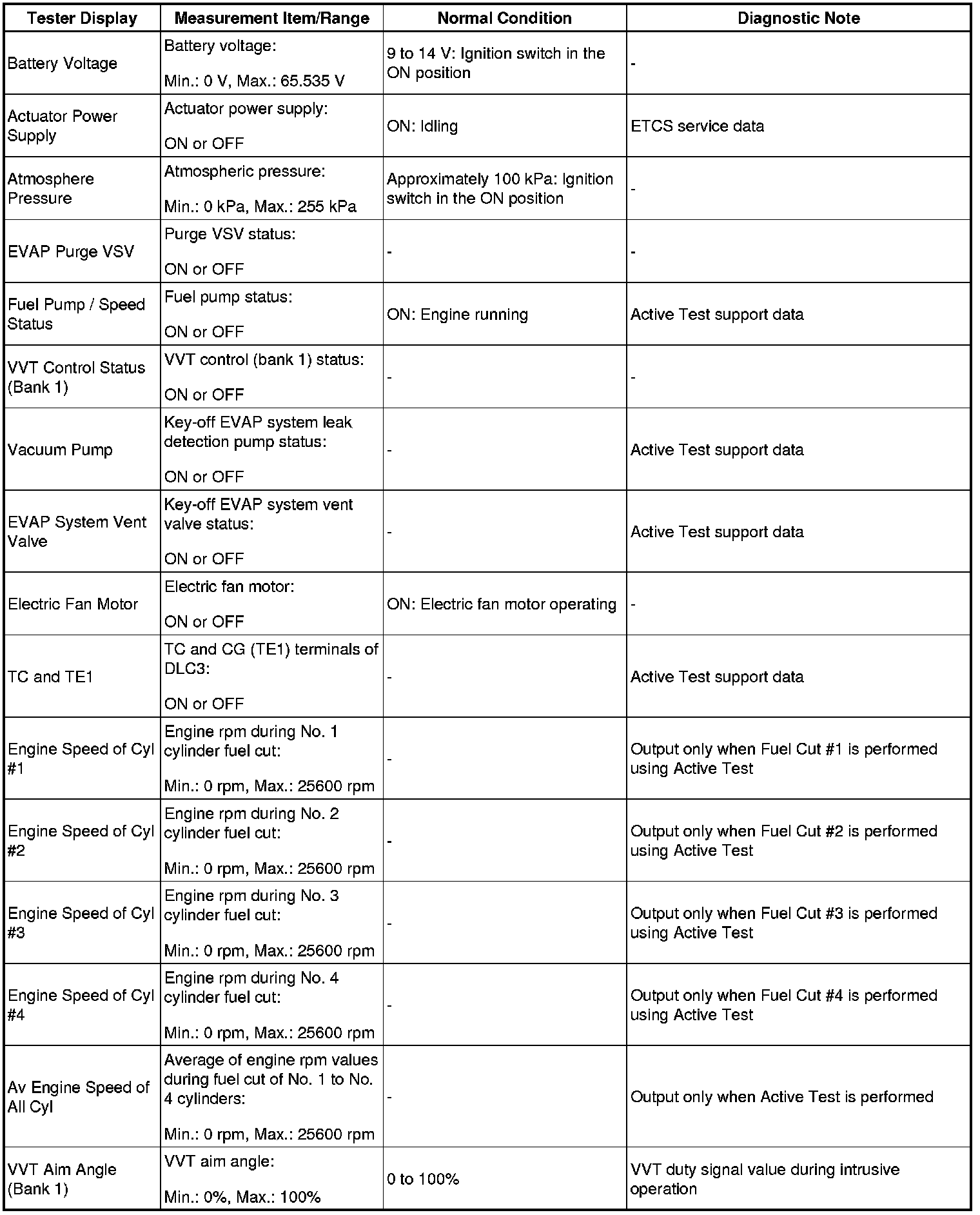

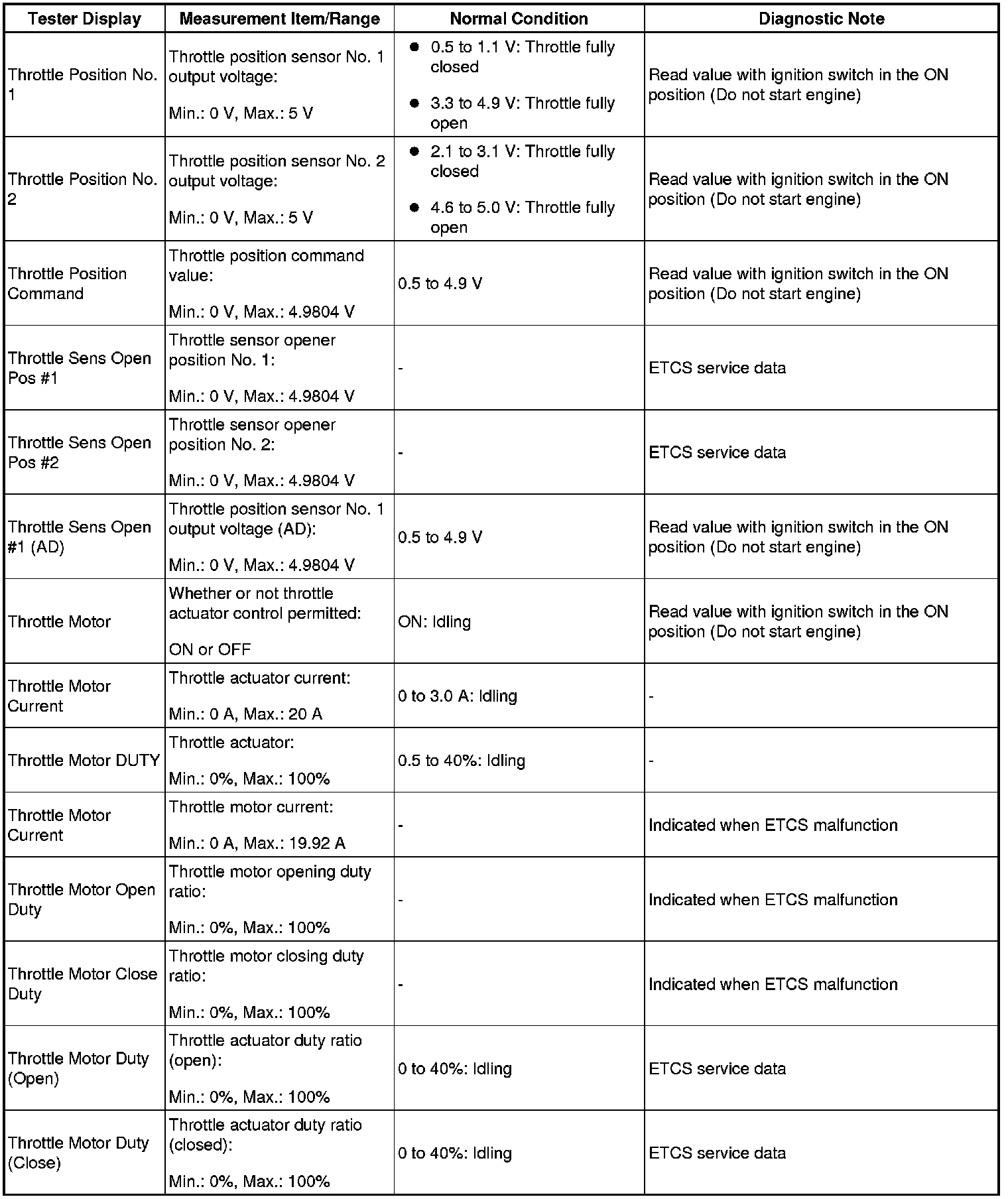

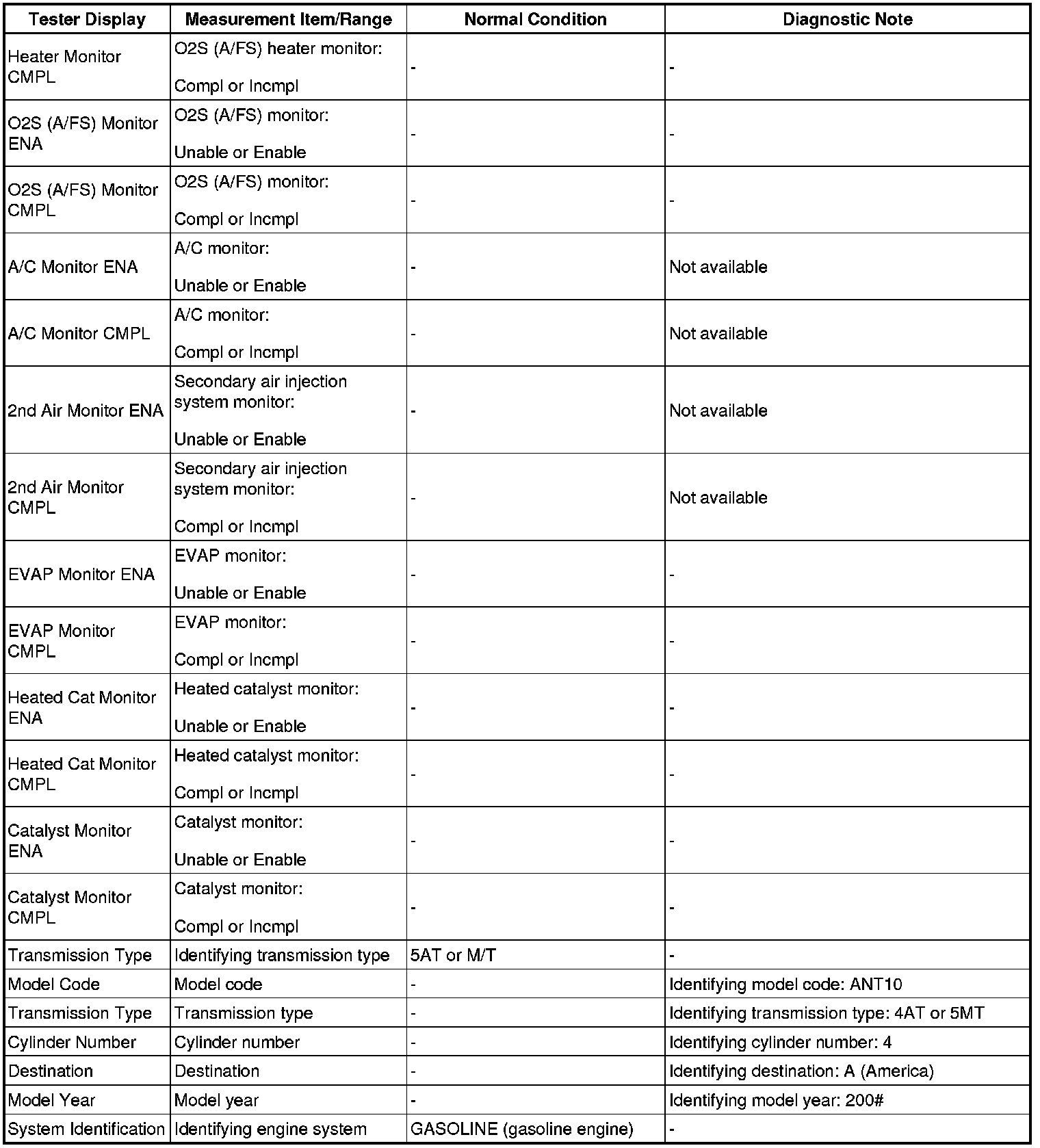

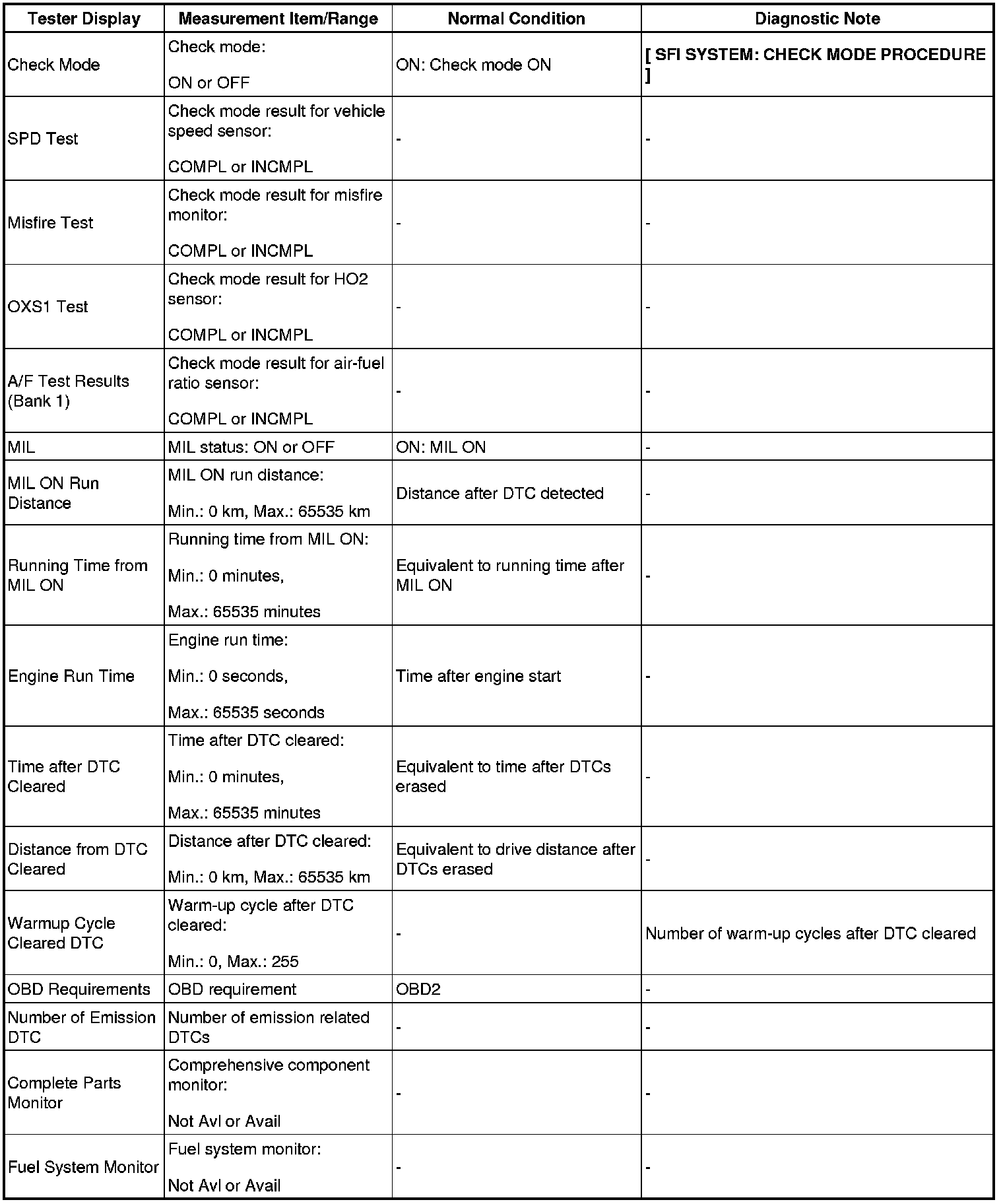

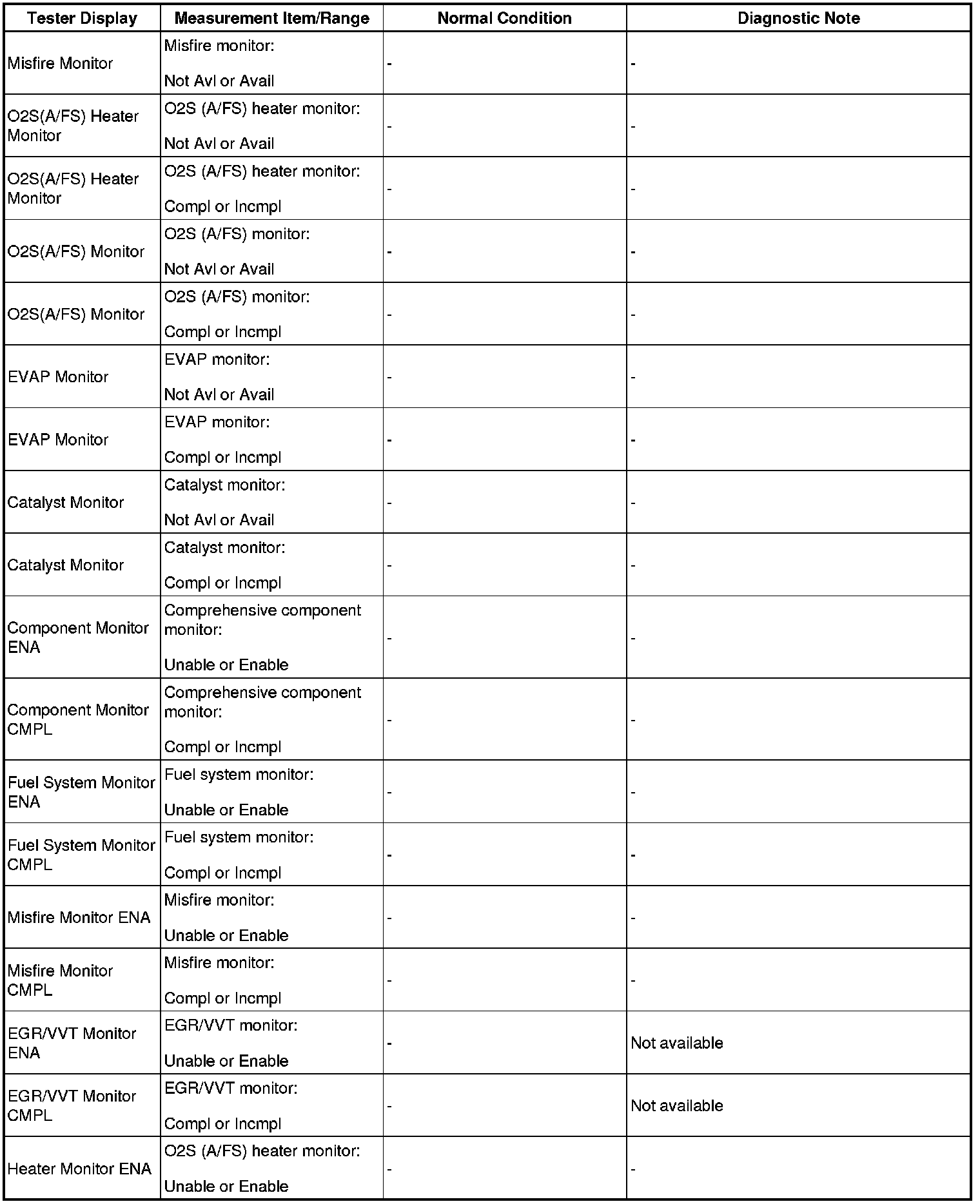

ECM:













































HINT: Normal Condition: If no idling conditions are specified, the transmission gear selector lever should be in the N or P position, and the A/C switch and all accessory switches should be off.
*1: A/T only

2. ACTIVE TEST
HINT: Performing an Active Test enables components including the relays, VSV (Vacuum Switching Valve), and actuators, to be operated without removing any parts. The Active Test can be performed with the Techstream. Performing an Active Test as the first step in troubleshooting is one method of shortening diagnostic time.
Data List can be displayed during Active Test.

(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to the ON position.
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine and ECT / Active Test.

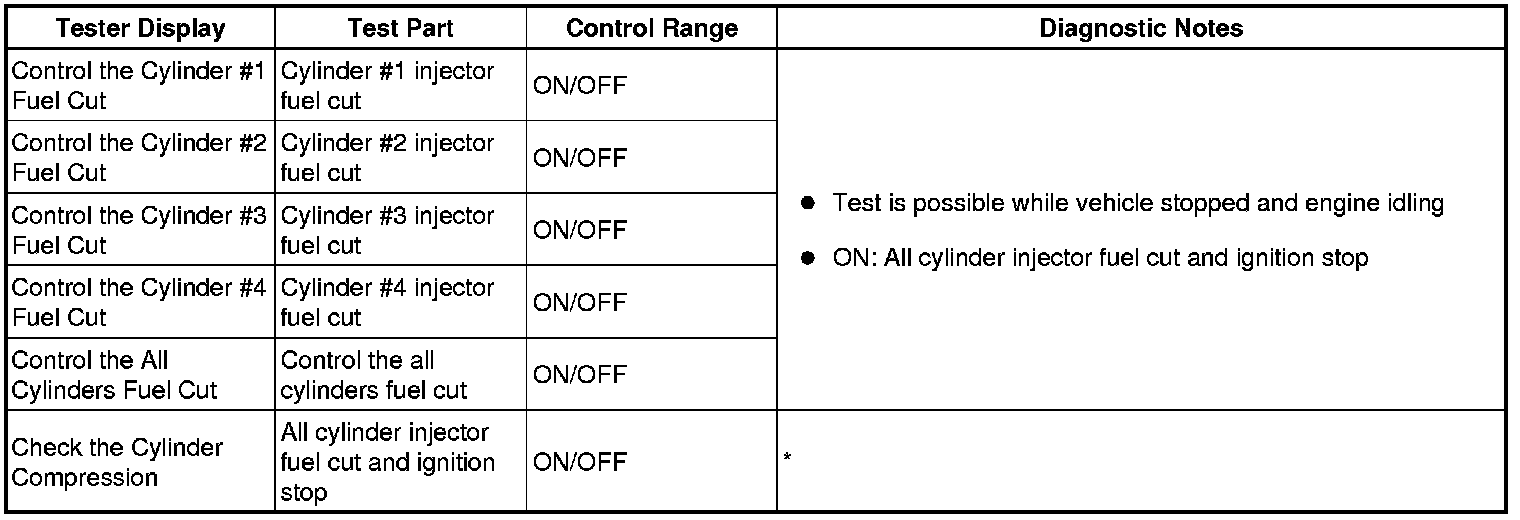

(e) Perform the Active Test by referring to the table below.

ECM:









*1: 4AT only
3. SYSTEM CHECK
HINT: Performing a System Check enables the system, which consists of multiple actuators, to be operated without removing any parts. In addition, it can show whether or not any DTCs are set, and can detect potential malfunctions in the system. The System Check can be performed with the Techstream.

(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to the ON position.
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine and ECT / Utility.

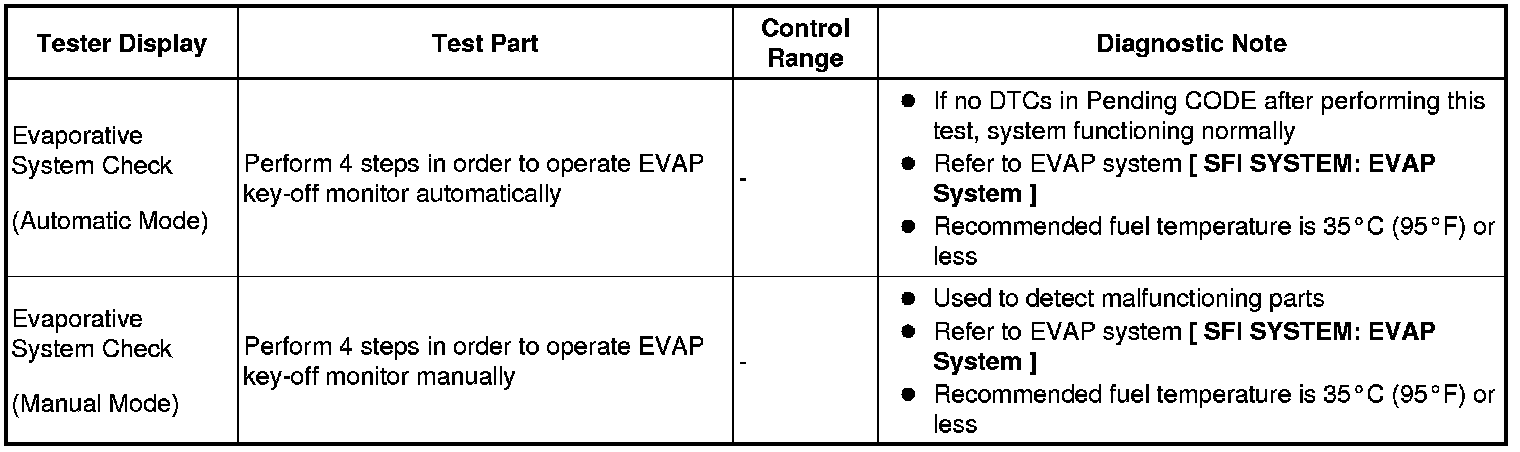

(e) Perform the System Check by referring to the table below.
