2AZ-FE EMISSION CONTROL: AIR FUEL RATIO SENSOR: REMOVAL

2AZ-FE EMISSION CONTROL: AIR FUEL RATIO SENSOR: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.





2. REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)
(a) Disconnect the sensor connector.

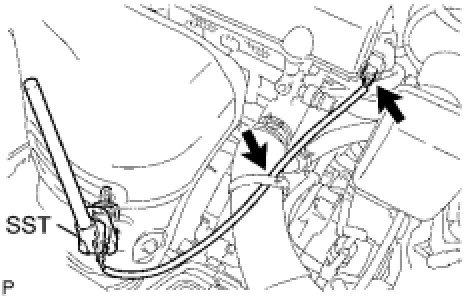

(b) Using SST, remove the sensor from the exhaust manifold.
SST: 09224-00010
