2AZ-FE EMISSION CONTROL: HEATED OXYGEN SENSOR: INSTALLATION

2AZ-FE EMISSION CONTROL: HEATED OXYGEN SENSOR: INSTALLATION





1. INSTALL HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)

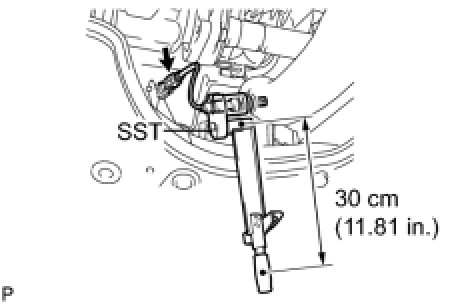

(a) Using SST, install the sensor to the front exhaust pipe.
SST: 09224-00010
Torque: 40 Nm (408 kgf-cm, 30 ft-lbf) for use with SST
Torque: 44 Nm (449 kgf-cm, 32 ft-lbf) for use without SST
HINT: Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).

(b) Connect the sensor connector.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. PERFORM INITIALIZATION
(a) Perform the initialization Testing and Inspection.
NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

4. CHECK FOR EXHAUST GAS LEAKS
