Pinout Values and Diagnostic Parameters

TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: TERMINALS OF ECU

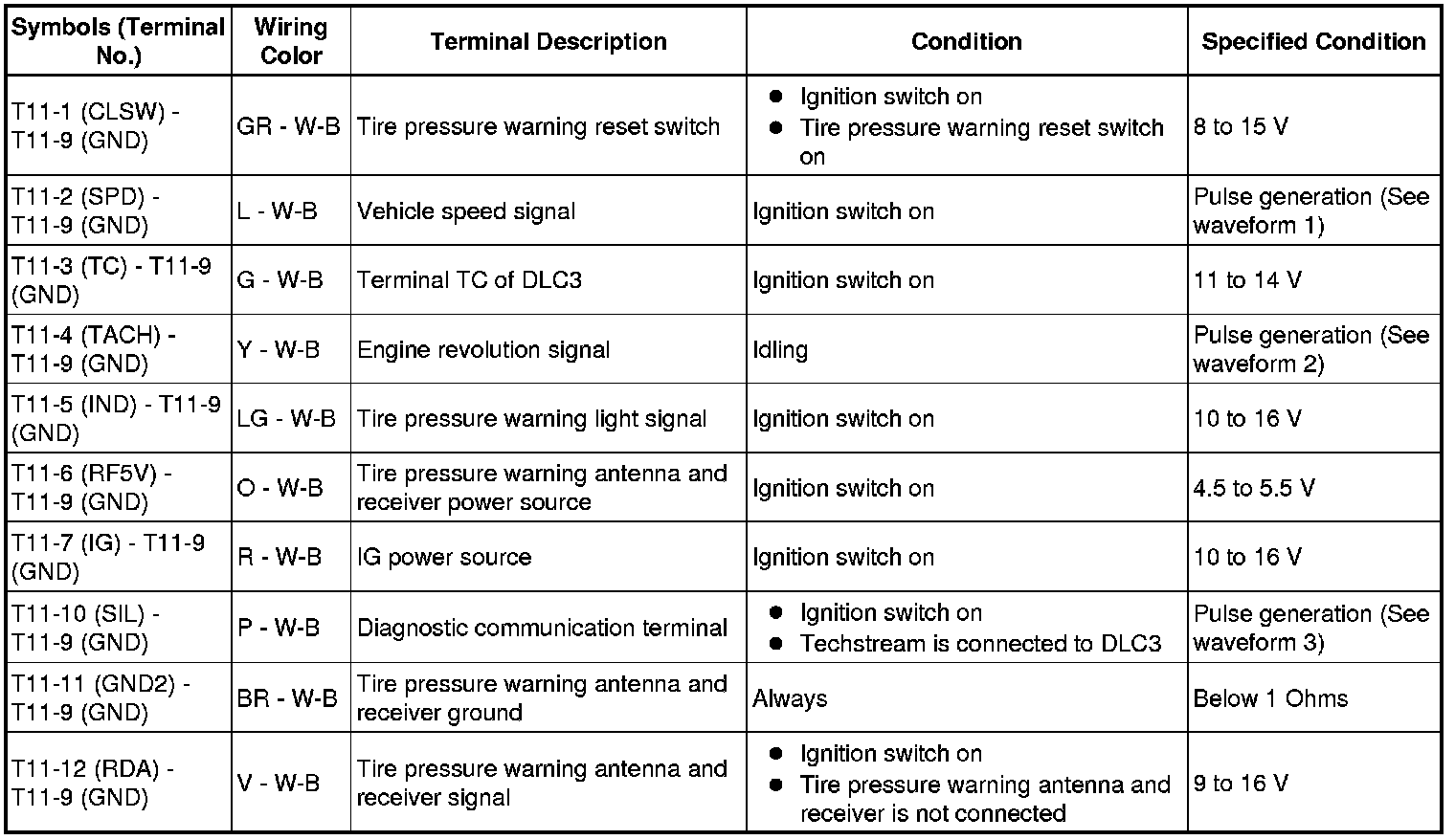

TIRE PRESSURE WARNING SYSTEM: TERMINALS OF ECU

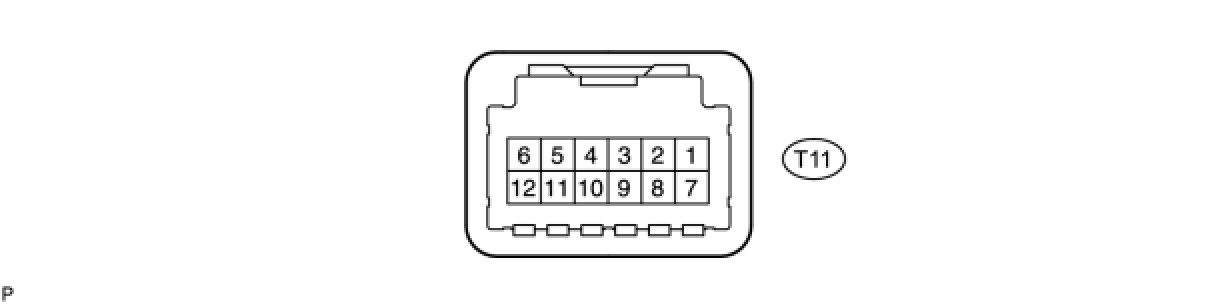

HINT: Inspect the connectors from the back side while the connectors are connected.

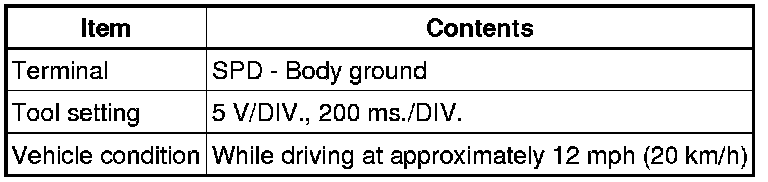

1. Waveform 1 (Reference)

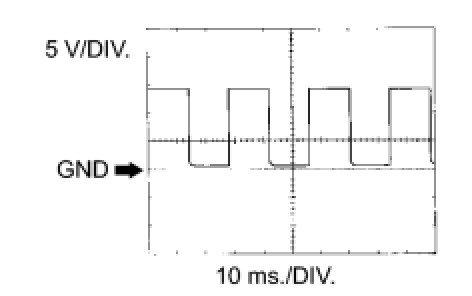

(a) Waveform

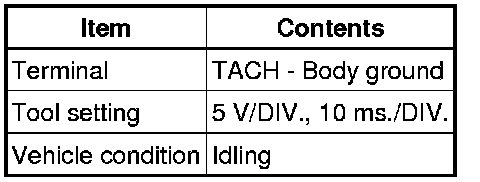

2. Waveform 2 (Reference)

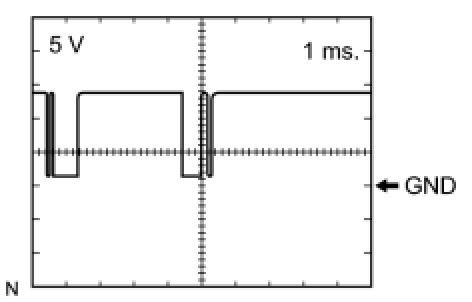

(a) Waveform





HINT: The wavelength becomes shorter as the engine rpm increases.

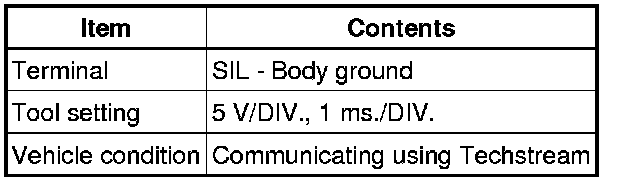

3. Waveform 3 (Reference)





(a) Waveform
