Turn Signal Flasher: Testing and Inspection

LIGHTING: TURN SIGNAL FLASHER ASSEMBLY: ON-VEHICLE INSPECTION

TURN SIGNAL FLASHER ASSEMBLY: ON-VEHICLE INSPECTION

1. INSPECT TURN SIGNAL FLASHER OPERATION





(a) Inspect the power source circuit and ground circuit

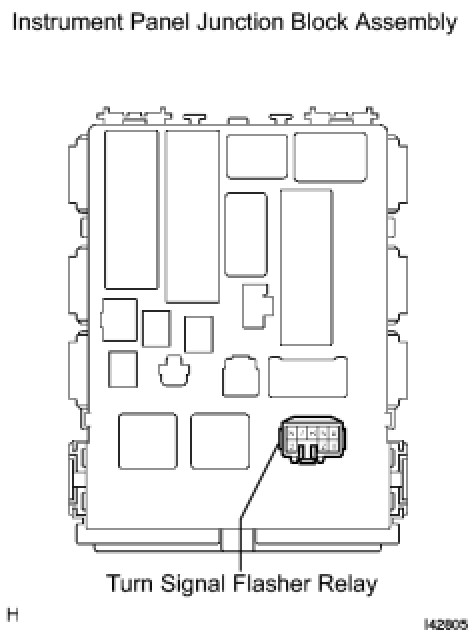

(1) Remove the turn signal flasher relay from the instrument panel junction block assembly.

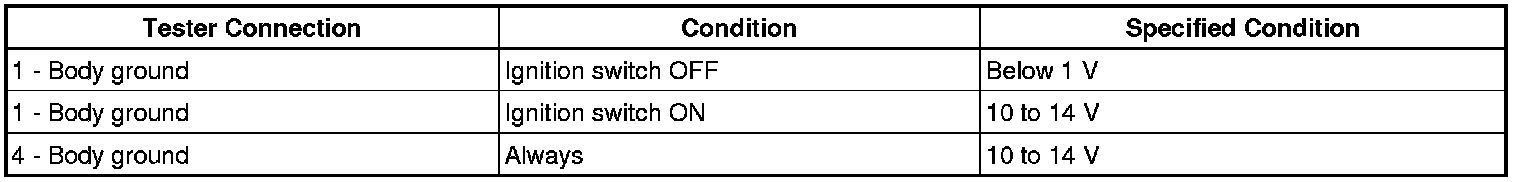

(2) Measure the voltage according to the value(s) in the table below.
Standard voltage:





(3) Measure the resistance according to the value(s) in the table below.
Standard resistance:





(b) Inspect the output operation signal.

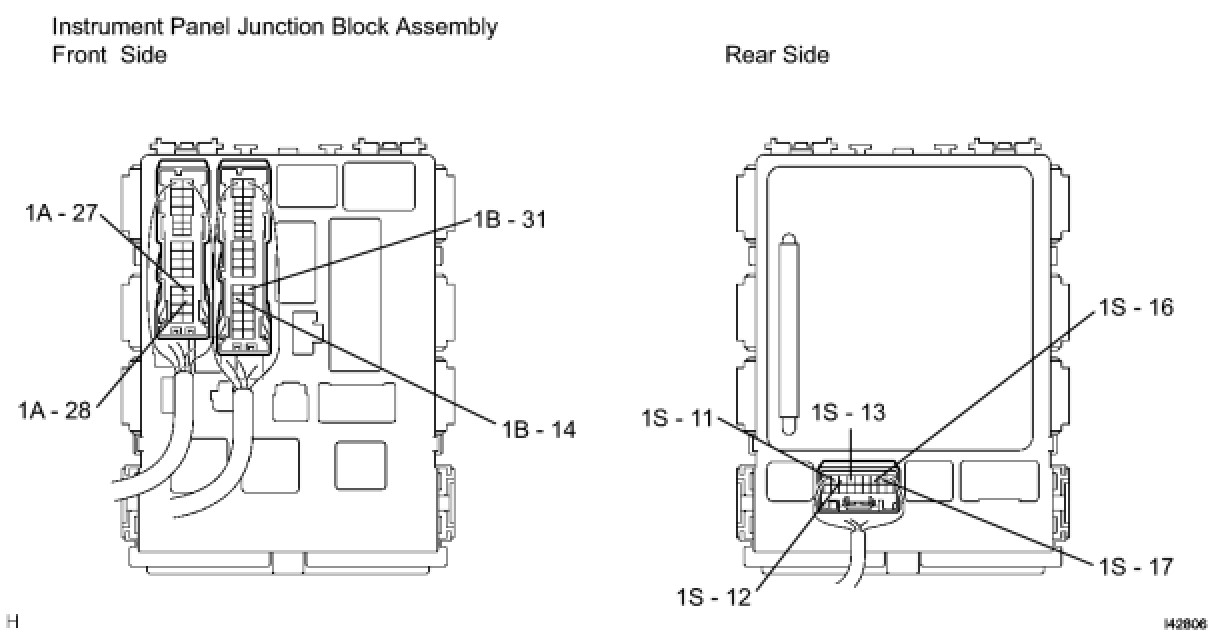

(1) Install the turn signal flasher relay to the instrument panel junction block assembly.

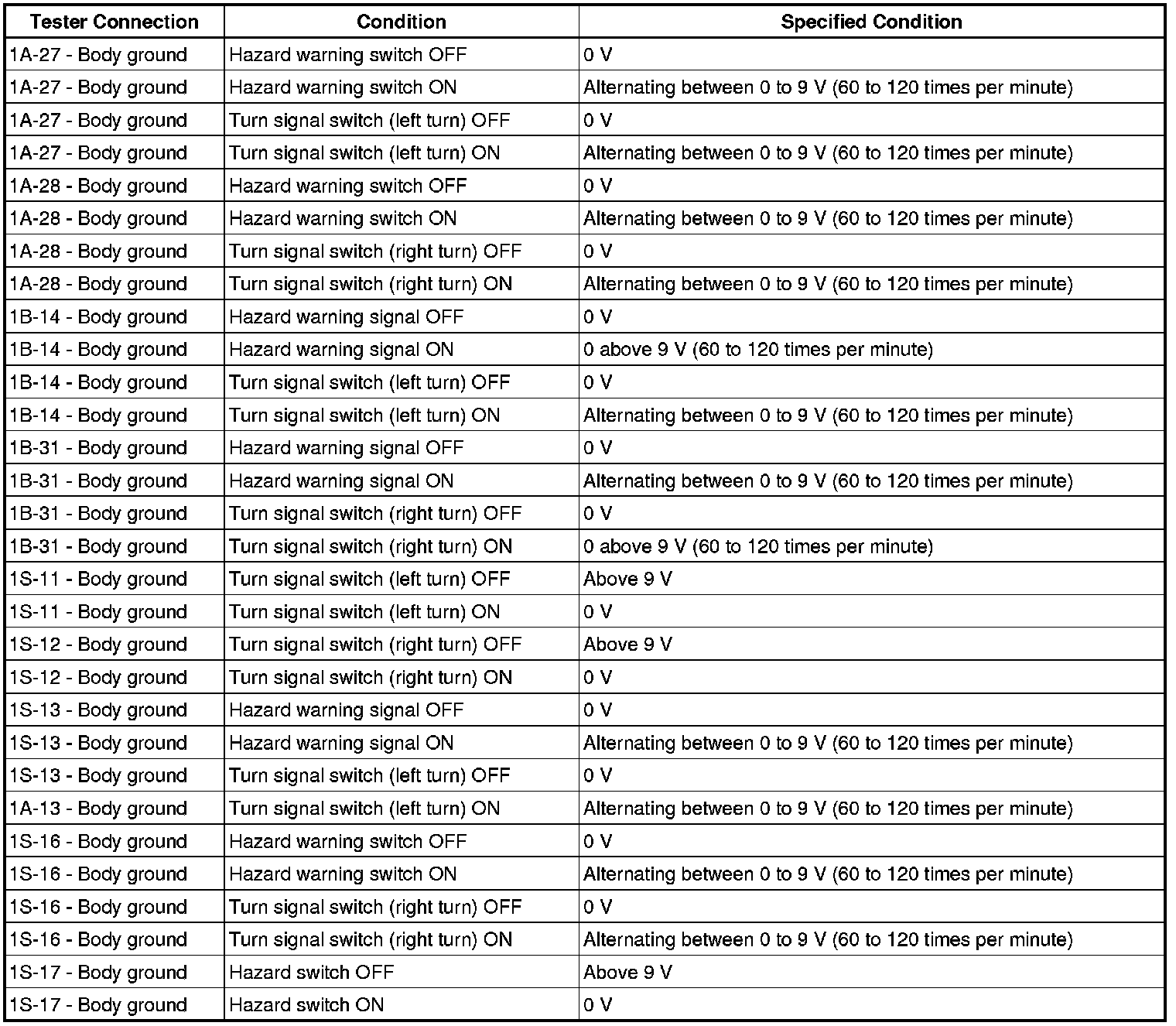

(2) Measure the voltage according to the value(s) in the table below.





Standard voltage:
