Removal

LIGHTING: REAR COMBINATION LIGHT ASSEMBLY: REMOVAL

REAR COMBINATION LIGHT ASSEMBLY: REMOVAL
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. REMOVE REAR BUMPER COVER Removal
2. REMOVE REAR COMBINATION LIGHT SERVICE COVER

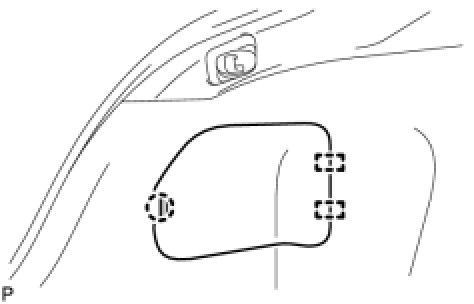

(a) Disengage the claw.
(b) Disengage the 2 guides and remove the rear combination light service cover.
3. REMOVE REAR COMBINATION LIGHT ASSEMBLY





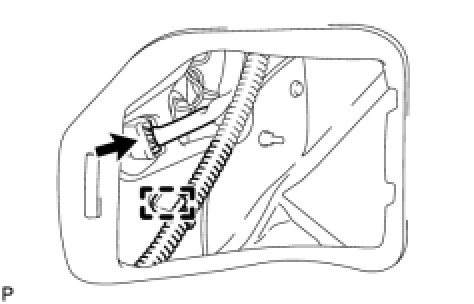

(a) Disconnect the connector and disengage the clamp.





(b) Remove the 3 nuts.

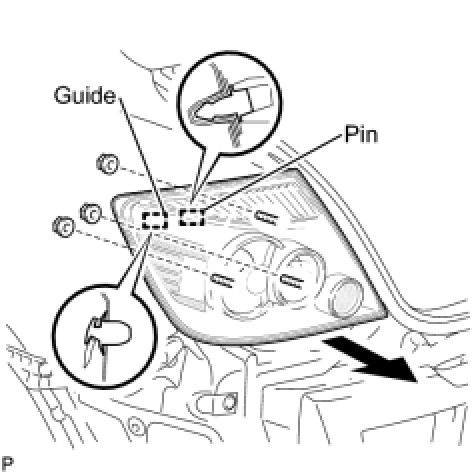

(c) Disengage the guide and pin, and remove the rear combination light assembly.
