Installation

LIGHTING: REAR COMBINATION LIGHT ASSEMBLY: INSTALLATION

REAR COMBINATION LIGHT ASSEMBLY: INSTALLATION
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. INSTALL REAR COMBINATION LIGHT ASSEMBLY

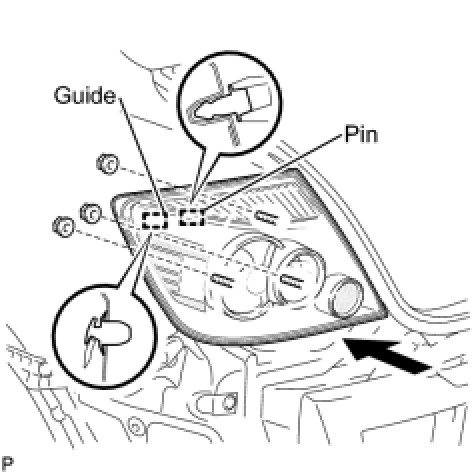

(a) Engage the guide and pin.
(b) Install the rear combination light assembly with 3 the nuts.
Torque: 4.9 Nm (50 kgf-cm, 43 in-lbf)





(c) Connect the connector and engage the clamp.
2. INSTALL REAR COMBINATION LIGHT SERVICE COVER





(a) Engage the 2 guides.
(b) Engage the claw and install the rear combination light service cover.
3. INSTALL REAR BUMPER COVER Installation
