Component Tests and General Diagnostics









LIGHTING: LIGHTING SYSTEM: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

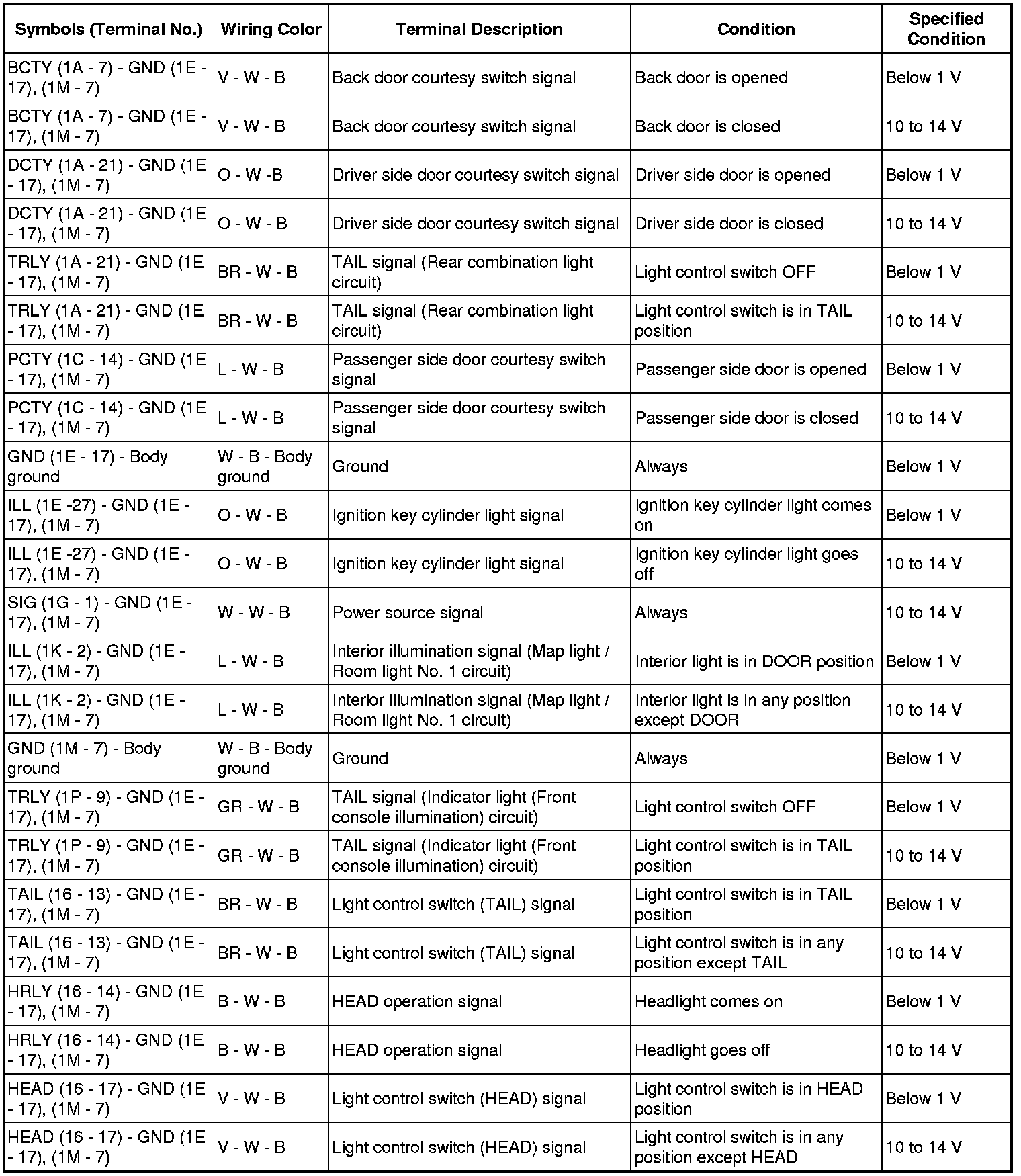

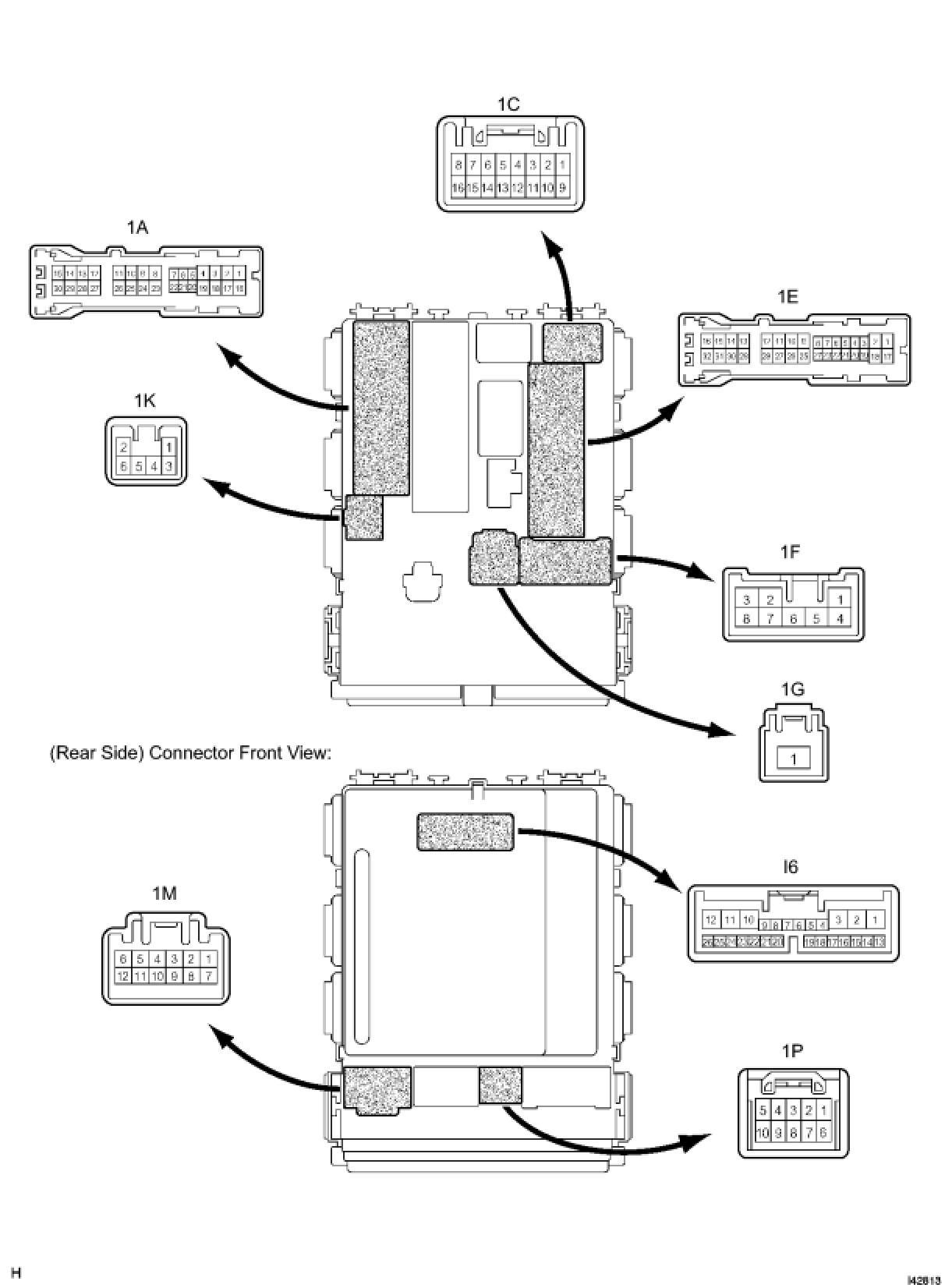

1. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
