Component Tests and General Diagnostics

LIGHTING: REAR COMBINATION LIGHT ASSEMBLY: ON-VEHICLE INSPECTION

REAR COMBINATION LIGHT ASSEMBLY: ON-VEHICLE INSPECTION

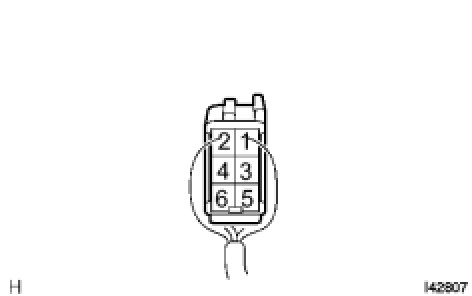

1. INSPECT REAR COMBINATION LIGHT ASSEMBLY

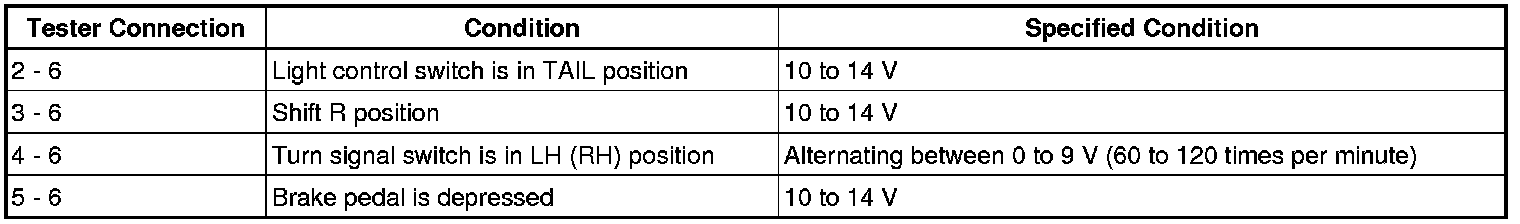

(a) Measure the voltage according to the value(s) in the table below.
Standard voltage:
