Key Cylinder Lamp: Testing and Inspection

LIGHTING: IGNITION KEY CYLINDER LIGHT: INSPECTION

IGNITION KEY CYLINDER LIGHT: INSPECTION

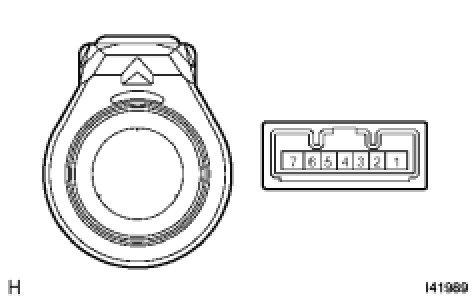

1. INSPECT TRANSPONDER KEY AMPLIFIER
(a) Inspect the ignition key cylinder light operation.
(1) Connect the battery positive (+) lead to terminal 2 and the battery negative (-) lead to terminal 6, and then check that the light comes on.
OK:
Light comes on.
