Low Pitched Horn

HORN: LOW PITCHED HORN: INSPECTION

HORN: LOW PITCHED HORN: INSPECTION





1. INSPECT LOW PITCHED HORN

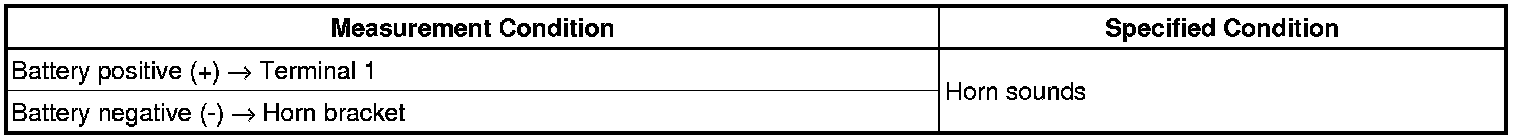

(a) Apply battery voltage to the horn and check the operation of the horn.
OK:





If the result is not as specified, replace the horn. If all the check results are as specified above and the wire harness is normal but the horn does not sound, replace the horn button switch (steering pad) Removal.
