Horn: Description and Operation

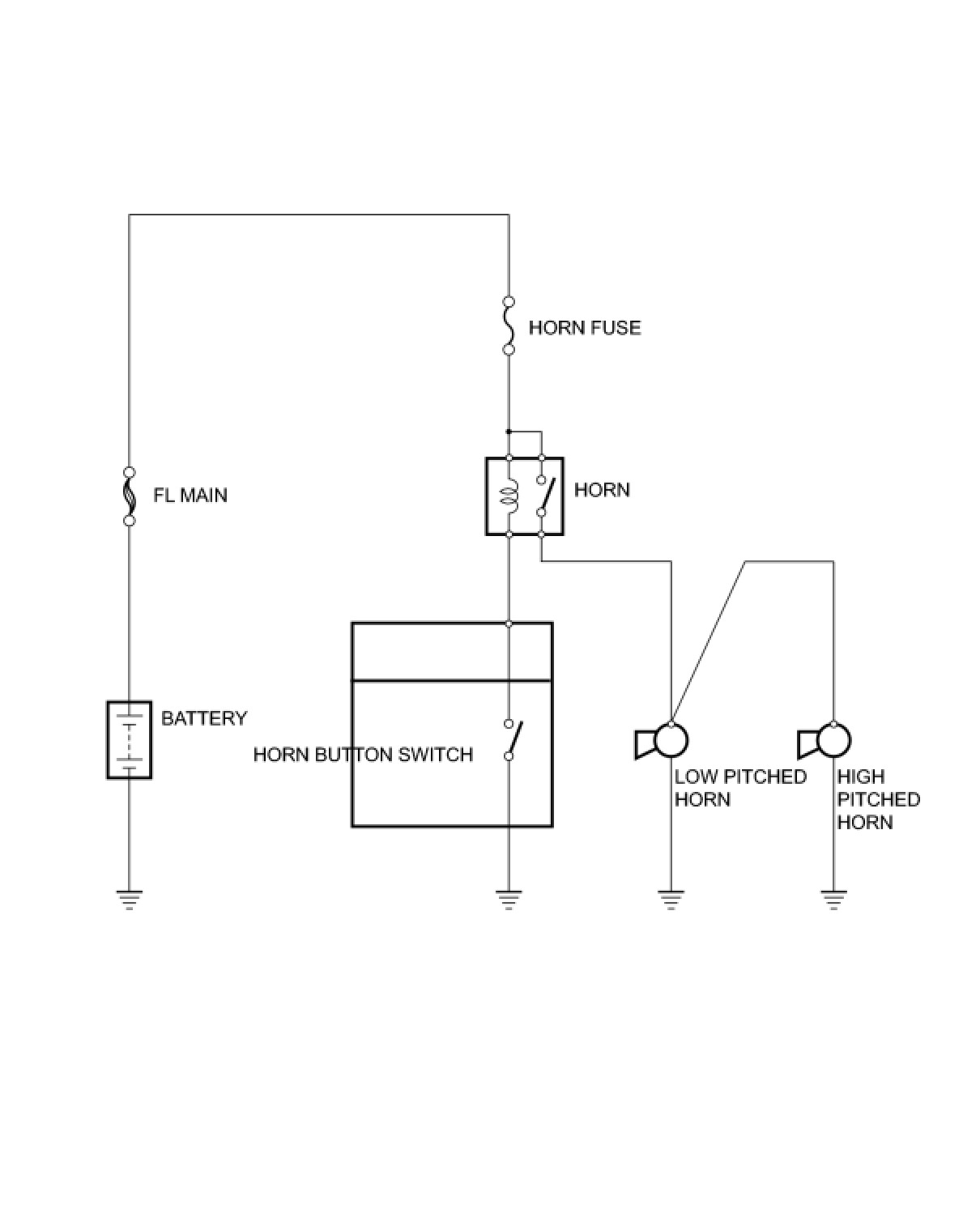

HORN: HORN SYSTEM: SYSTEM DIAGRAM

HORN: HORN SYSTEM: SYSTEM DIAGRAM
