LIGHTING: HEADLIGHT ASSEMBLY: INSTALLATION

HEADLIGHT ASSEMBLY: INSTALLATION
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. INSTALL HEADLIGHT ASSEMBLY

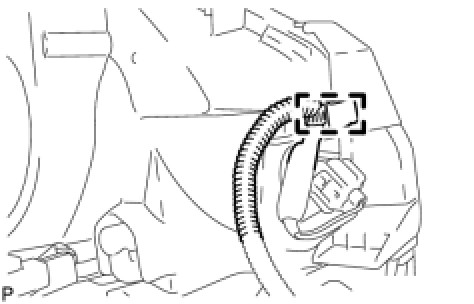

(a) Engage the clamp.
(b) Connect the connectors.

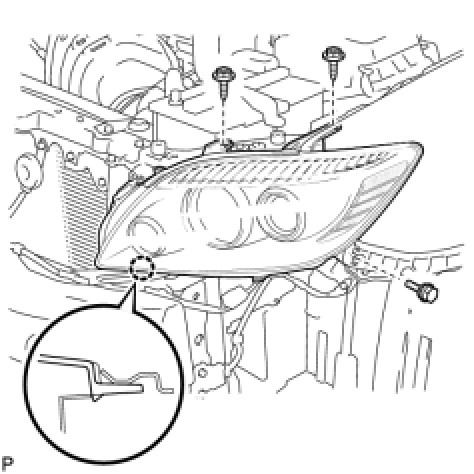

(c) Engage the claw and install the headlight assembly with the bolt and 2 screws.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
2. INSTALL FRONT BUMPER COVER Installation
3. INSTALL FRONT FENDER LINER LH Installation
4. INSTALL FRONT FENDER LINER RH Installation
5. VEHICLE PREPARATION FOR HEADLIGHT AIMING ADJUSTMENT Adjustments
6. PREPARATION FOR HEADLIGHT AIMING (Using a headlight aim test machine) Adjustments
7. PREPARATION FOR HEADLIGHT AIMING (Using a screen) Adjustments
8. INSPECT HEADLIGHT AIMING Adjustments
9. ADJUST HEADLIGHT AIMING Adjustments
