Installation

LIGHTING: HIGH MOUNTED STOP LIGHT ASSEMBLY: INSTALLATION

HIGH MOUNTED STOP LIGHT ASSEMBLY: INSTALLATION





1. INSTALL CENTER STOP LIGHT ASSEMBLY

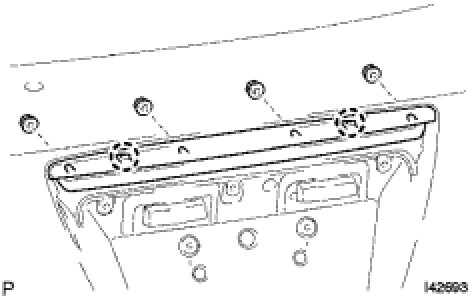

(a) Install the 4 nuts and attach the 2 claws, and then install the center stop light.
(b) Connect the connector.
2. INSTALL BACK DOOR GARNISH SUB-ASSEMBLY OUTSIDE
3. INSTALL BACK DOOR SIDE GARNISH RH Reassembly
4. INSTALL BACK DOOR SIDE GARNISH LH Reassembly
5. INSTALL BACK DOOR GARNISH CENTER Reassembly
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. PERFORM INITIALIZATION
(a) Perform initialization Testing and Inspection.
NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
