METER: COMBINATION METER: INSTALLATION

COMBINATION METER: INSTALLATION

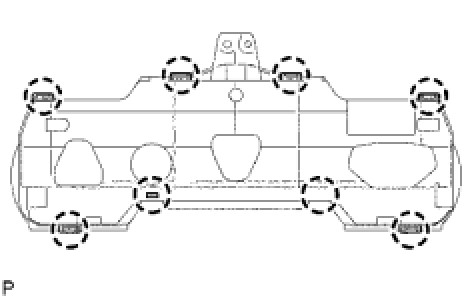

1. INSTALL COMBINATION METER GLASS
(a) Attach the 8 claws to install the combination meter glass.

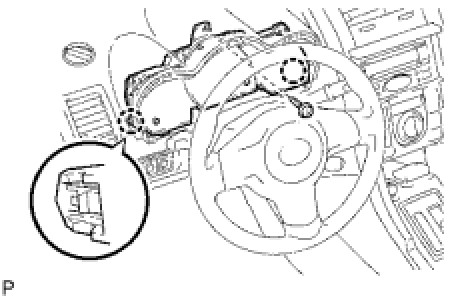

2. INSTALL COMBINATION METER ASSEMBLY
(a) Connect the connector and install the combination meter.
(b) Attach the 2 claws to install the screw.





3. INSTALL METER HOOD SUB-ASSEMBLY
(a) Attach the 9 claws to install the meter hood.
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION
(a) Perform initialization Testing and Inspection.
NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

6. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
