AIR CONDITIONING: AIR CONDITIONING PANEL: INSTALLATION

AIR CONDITIONING PANEL: INSTALLATION

1. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY





(a) Connect the connector.

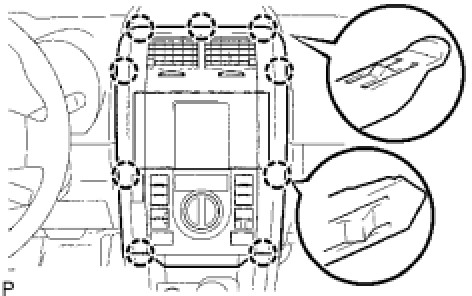

(b) Attach the 9 claws to install the instrument cluster finish panel.
2. INSTALL CONSOLE PANEL UPPER FRONT Installation
3. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Installation
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION
(a) Perform initialization Testing and Inspection.
NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
