AIR CONDITIONING: COMPRESSOR AND MAGNETIC CLUTCH: REMOVAL

COMPRESSOR AND MAGNETIC CLUTCH: REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM Service and Repair
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

3. DISCONNECT NO. 1 COOLER REFRIGERANT SUCTION HOSE

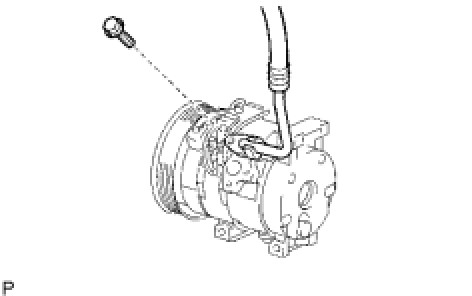

(a) Remove the bolt and disconnect the cooler refrigerant suction hose from the cooler compressor.
(b) Remove the O-ring from the cooler refrigerant suction hose.
NOTICE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

4. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE





(a) Remove the bolt and disconnect the cooler refrigerant discharge hose from the cooler compressor.
(b) Remove the O-ring from the cooler refrigerant discharge hose.
NOTICE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

5. REMOVE ENGINE UNDER COVER RH
6. REMOVE FAN AND GENERATOR V BELT Removal
7. REMOVE COOLER COMPRESSOR ASSEMBLY





(a) Disconnect the connector.

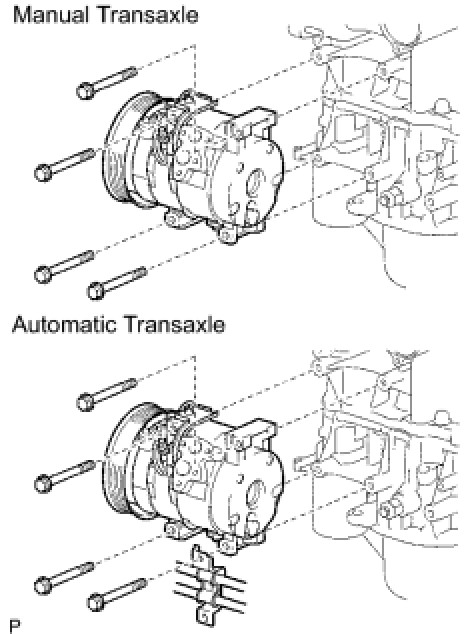

(b) Remove the 4 bolts and cooler compressor.
