Blower Motor: Testing and Inspection

AIR CONDITIONING: BLOWER MOTOR: ON-VEHICLE INSPECTION

BLOWER MOTOR: ON-VEHICLE INSPECTION

1. INSPECT BLOWER WITH FAN MOTOR SUB-ASSEMBLY

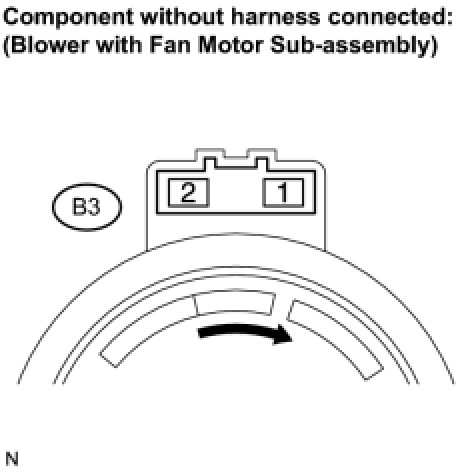

(a) Disconnect the B3 blower with fan motor connector.
(b) Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and then check that the motor operates smoothly.
If the operation is not as specified, replace the blower with fan motor.
