Blower Motor Resistor: Testing and Inspection

AIR CONDITIONING: BLOWER RESISTOR: ON-VEHICLE INSPECTION

BLOWER RESISTOR: ON-VEHICLE INSPECTION

1. INSPECT BLOWER MOTOR CONTROL

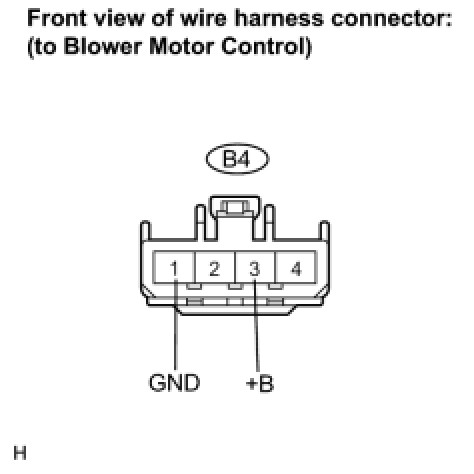

(a) Disconnect the B4 blower motor control connector.
(b) Measure the voltage of the wire harness side connector.
Standard voltage:





If the voltage is not as specified, replace the blower motor control.
