Disassembly









2AZ-FE EXHAUST: EXHAUST PIPE: DISASSEMBLY

EXHAUST PIPE: DISASSEMBLY

1. REMOVE TAILPIPE BAFFLE SUB-ASSEMBLY

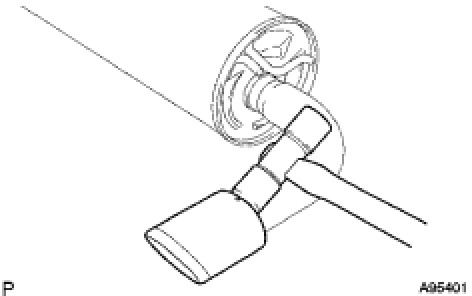

(a) Using a plastic-faced hammer, uniformly tap out the baffle.
