2AZ-FE COOLING: RADIATOR: ON-VEHICLE CLEANING

RADIATOR: ON-VEHICLE CLEANING





1. CHECK FIN FOR BLOCKAGE
(a) If the fins are clogged, wash them with water or a steam cleaner, and then dry them with compressed air.
NOTICE:
- If the fins are bent, straighten them with a screwdriver or pliers.
- Be careful not to expose electronic components to water.

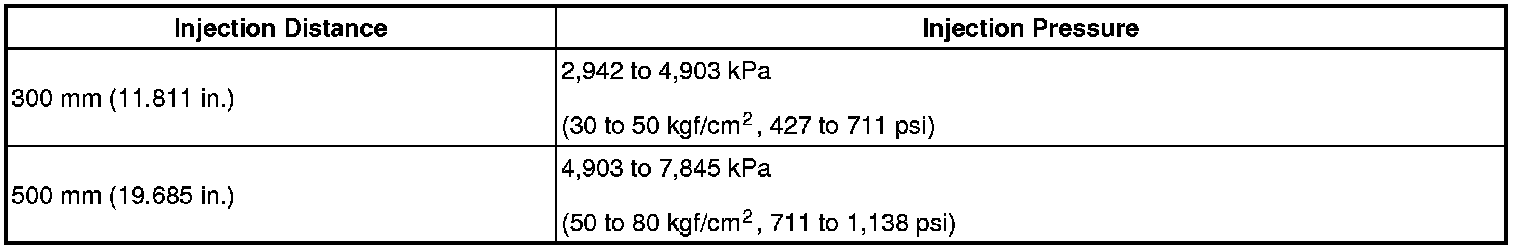

- If the distance between the steam cleaner and core is too small, there is a possibility of damaging the fins, so keep the following injection distances.
Standard pressure:
