Antilock Brakes / Traction Control Systems

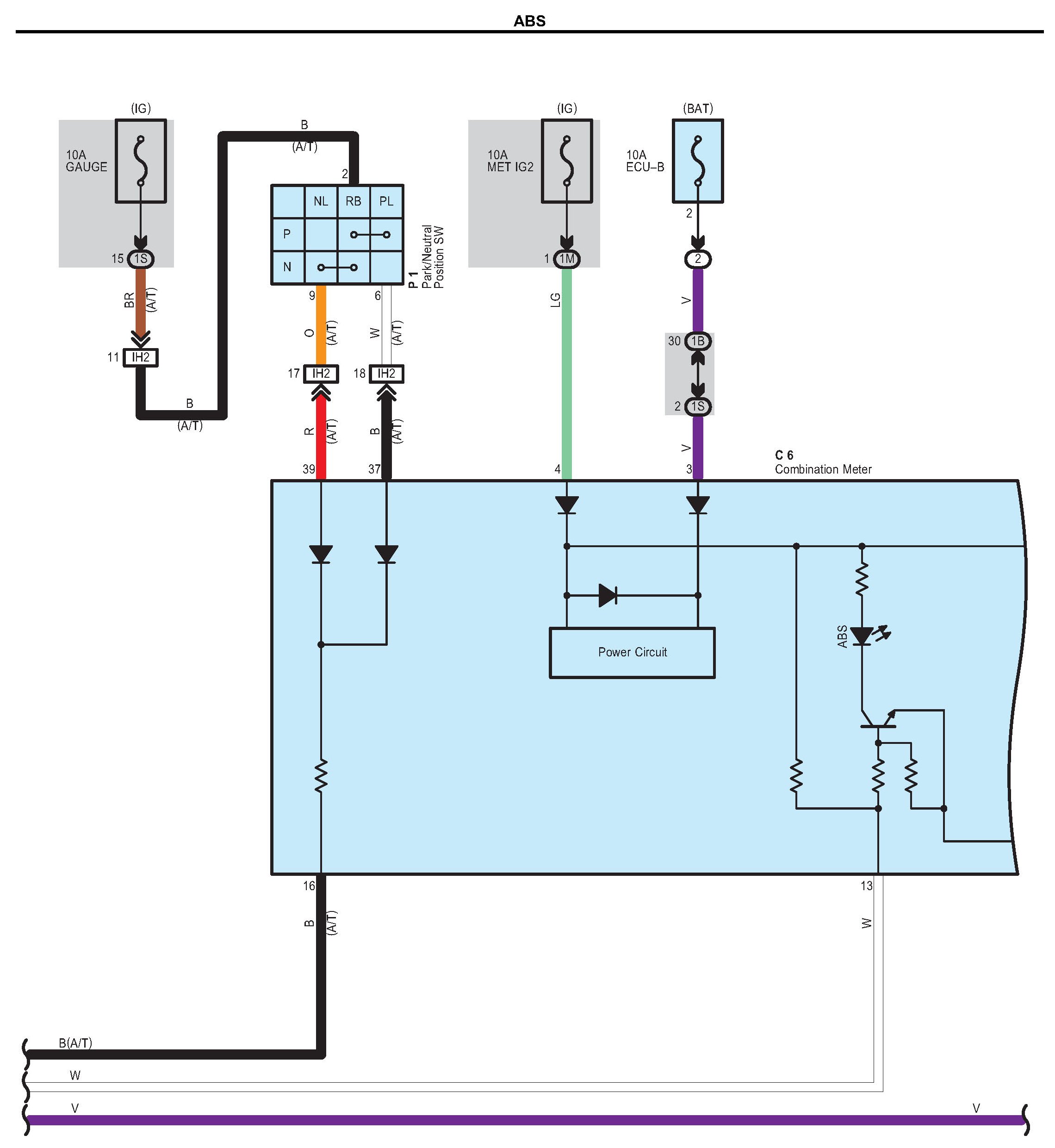

ABS Part 1:

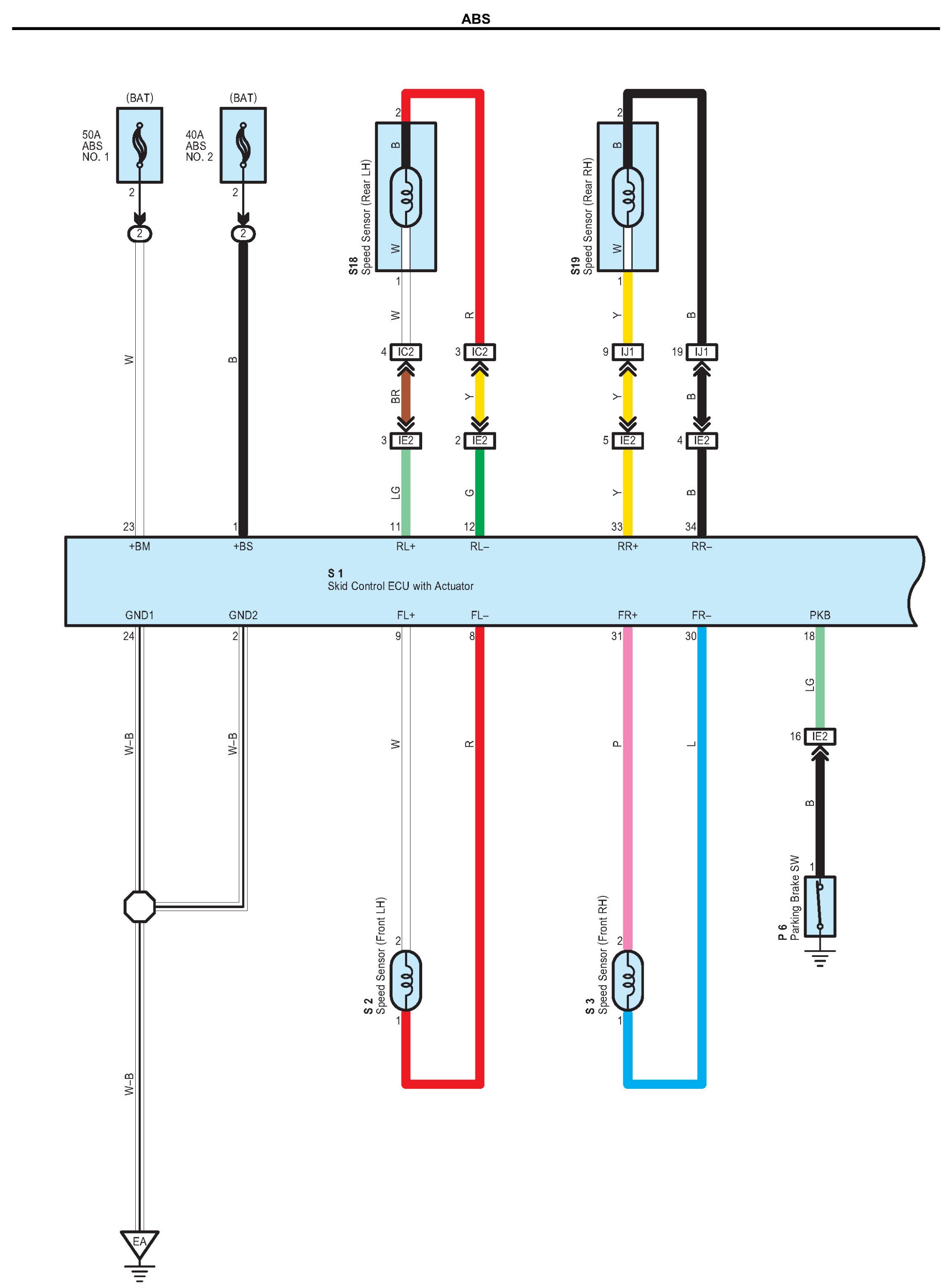

ABS Part 2:

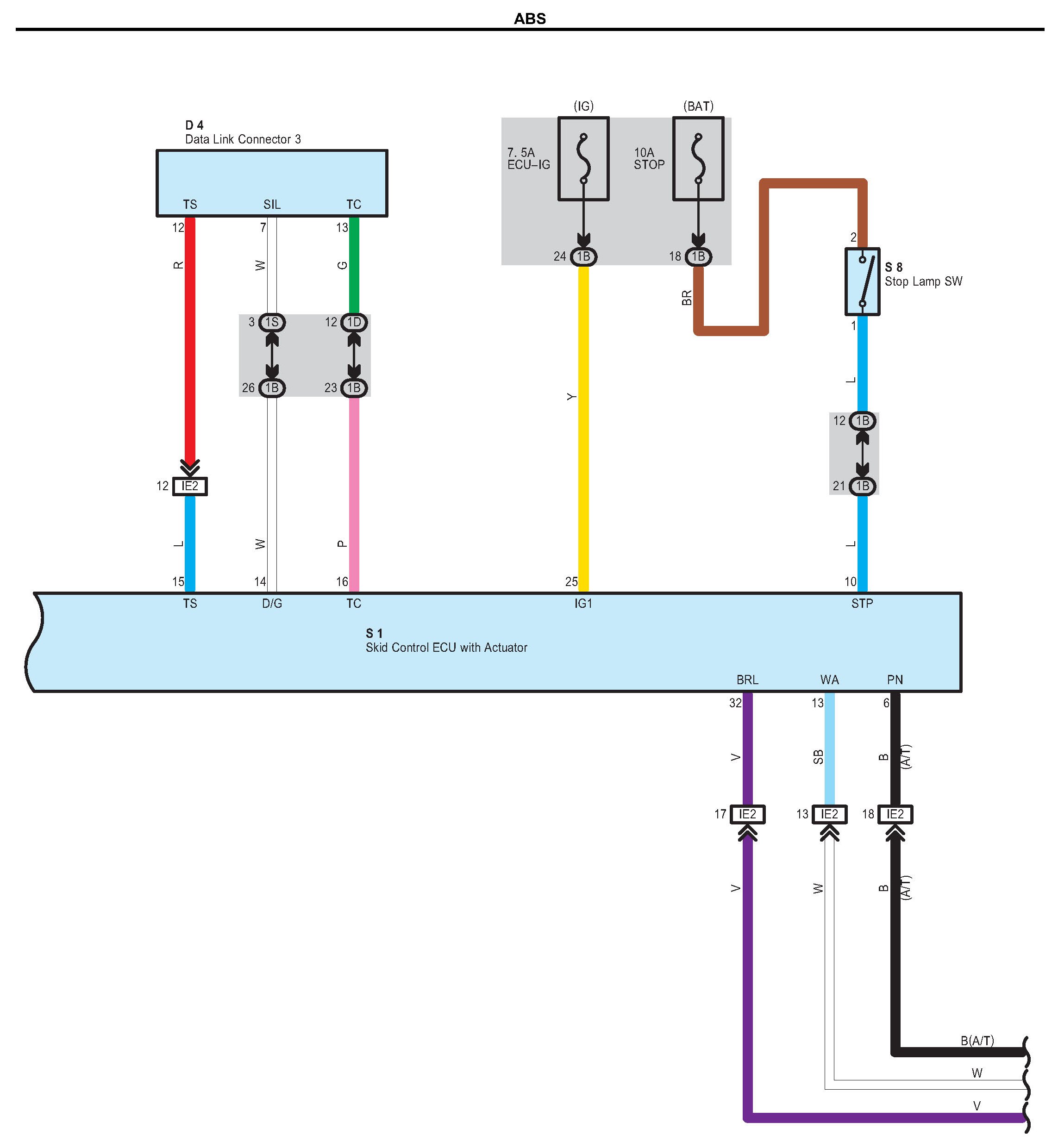

ABS Part 3:

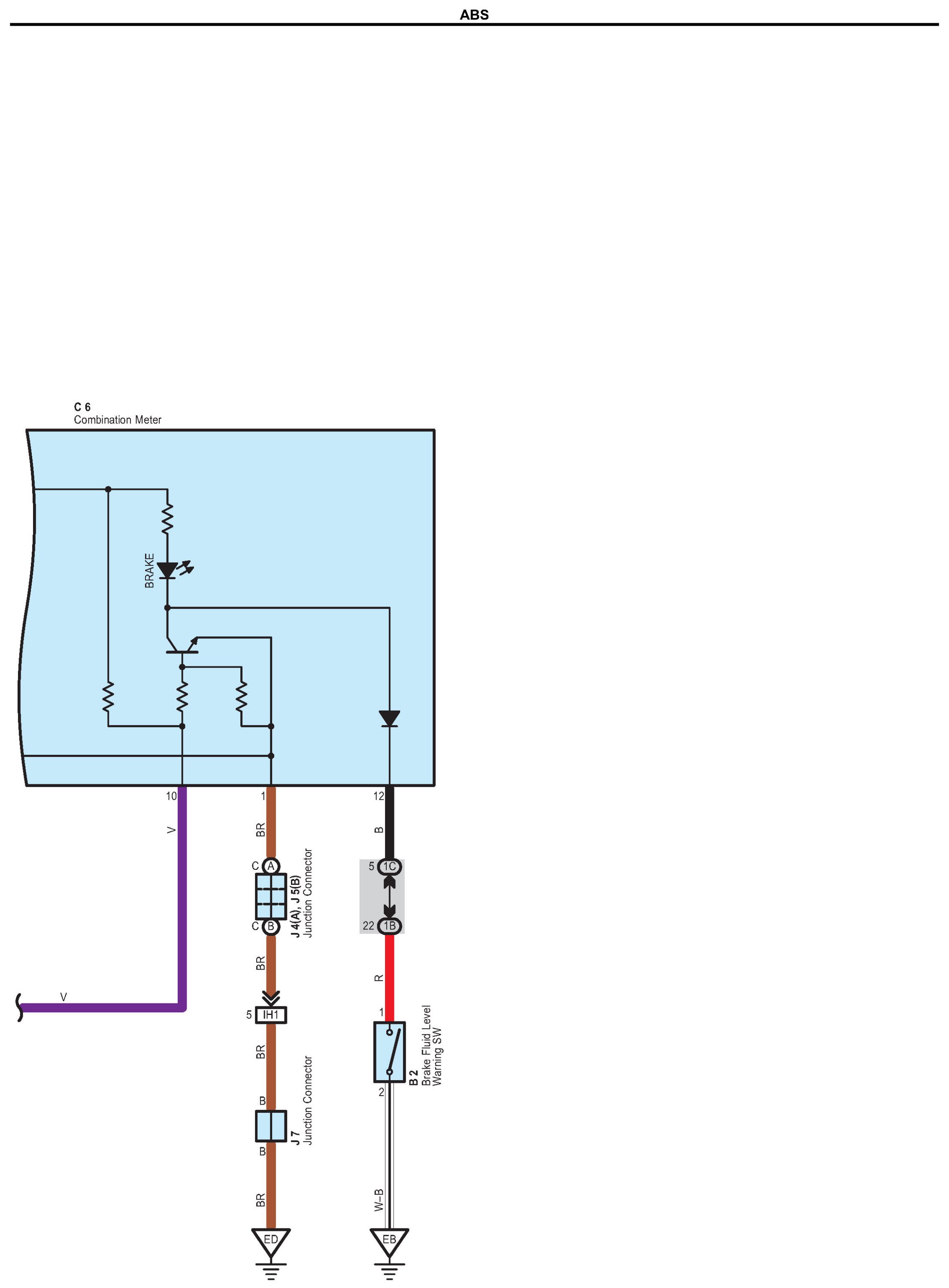

ABS Part 4:

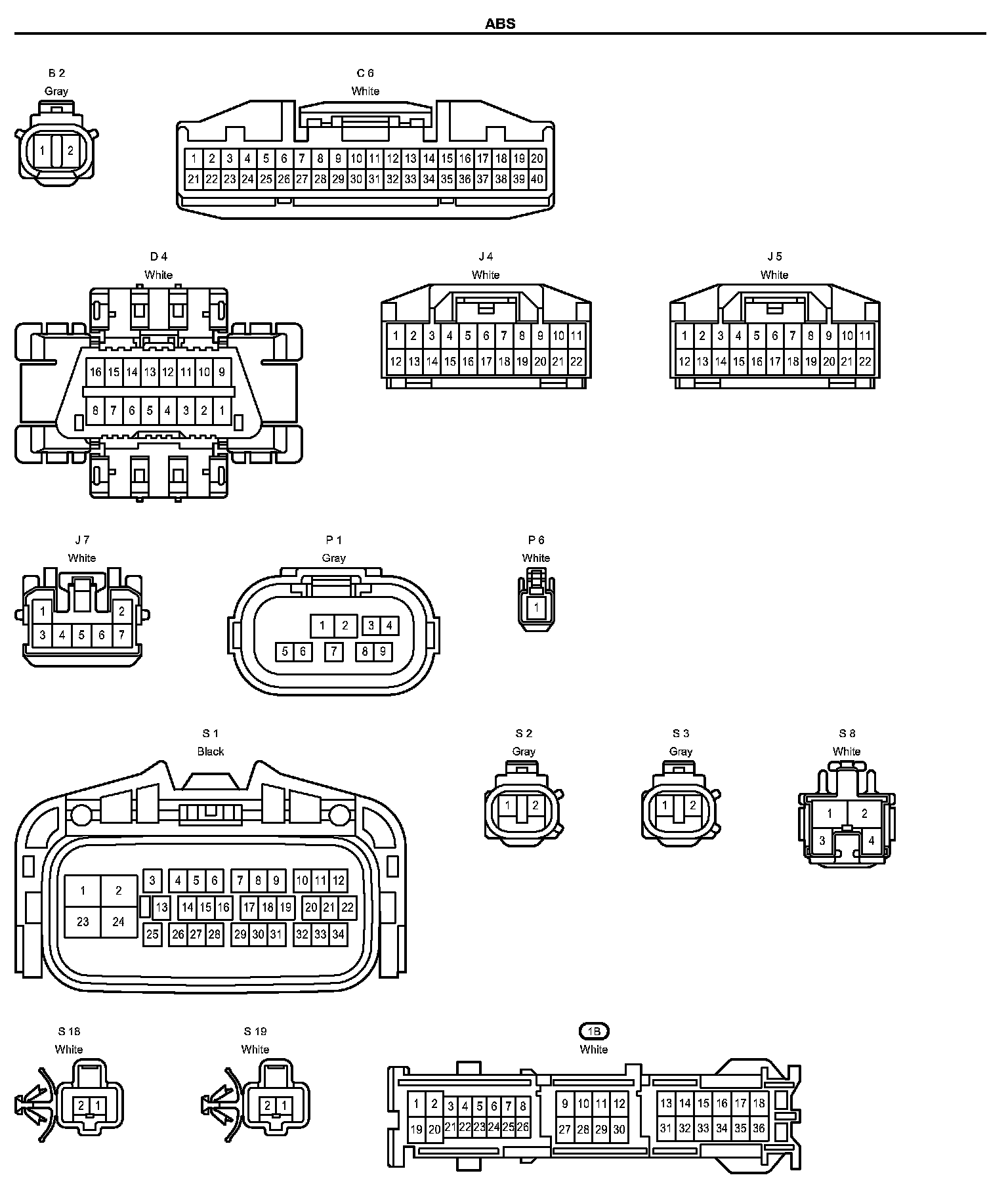

Connectors Part 1:

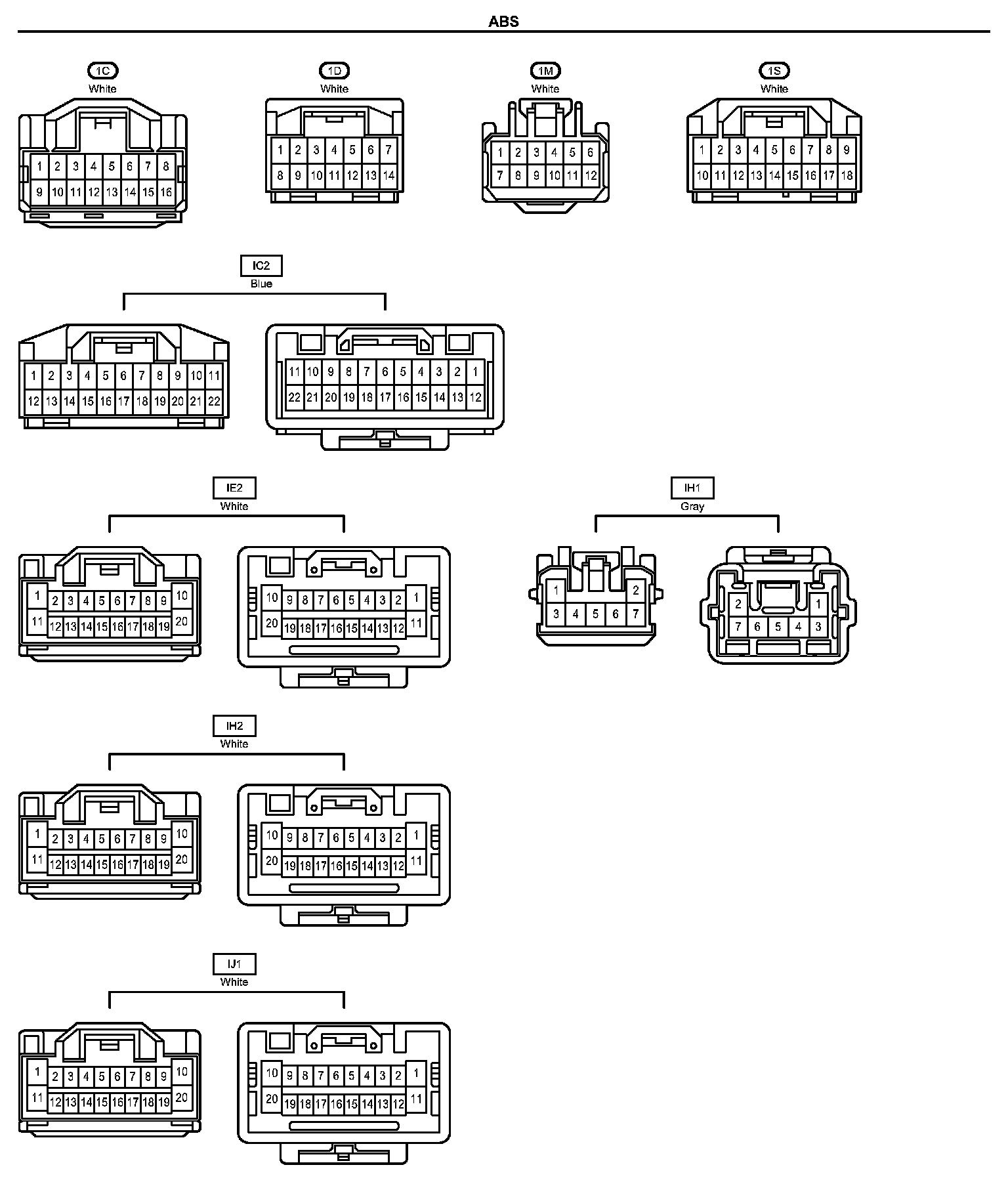

Connectors Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
