How to Proceed with Troubleshooting

CRUISE CONTROL: CRUISE CONTROL SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HOW TO PROCEED WITH TROUBLESHOOTING
HINT:
- Use these procedures to troubleshoot the cruise control system.
- *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP
NEXT -- Continue to next step.
2. INSPECT BATTERY VOLTAGE
Standard voltage:
11 to 14 V
If the voltage is below 11 V, recharge or replace the battery before proceeding.
NEXT -- Continue to next step.
3. CHECK INDICATOR LIGHT
(a) Refer to DIAGNOSIS SYSTEM Diagnosis System
NEXT -- Continue to next step.
4. CHECK FOR DTC*
(a) Check for DTCs and note any codes that are output.
(b) Delete the DTC.
(c) Recheck for DTCs, and try to prompt the DTC by simulating the original activity that the DTC suggests.

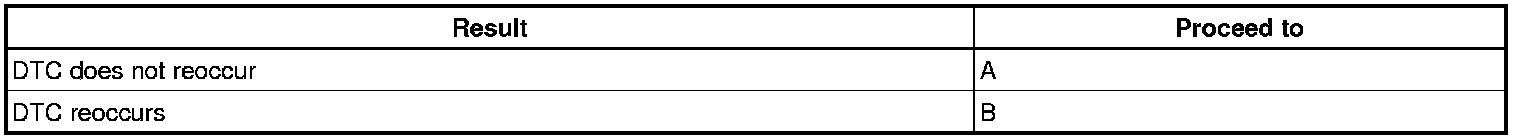

Result:





B -- Go to step 7
A -- Continue to next step.
5. PROBLEM SYMPTOMS TABLE

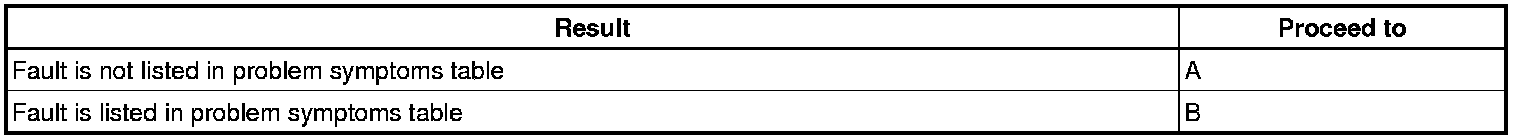

Result:





B -- Go to step 7
A -- Continue to next step.
6. OVERALL ANALYSIS AND TROUBLESHOOTING
(a) Refer to TERMINALS OF ECM Pinout Values and Diagnostic Parameters
(b) Refer to DATA LIST/ACTIVE TEST Scan Tool Testing and Procedures
NEXT -- Continue to next step.
7. REPAIR OR REPLACE
NEXT -- Continue to next step.
8. CONFIRMATION TEST
NEXT -- END
