Installation

BRAKE CONTROL: FRONT SPEED SENSOR: INSTALLATION

BRAKE CONTROL: FRONT SPEED SENSOR: INSTALLATION
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. INSTALL FRONT SPEED SENSOR LH





(a) Install the speed sensor with the bolt.
Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)
NOTICE: Keep the sensor tip and sensor installation hole free from foreign matter.

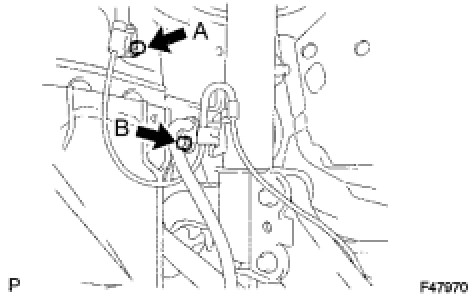

(b) Install the speed sensor to the body with the 2 bolts.
Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)
Torque: 29 Nm (296 kgf-cm, 21 ft-lbf)





(c) Connect the connector and attach the clamp.
2. INSTALL FRONT FENDER LINER LH Installation
3. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Testing and Inspection.

5. CHECK ABS SPEED SENSOR SIGNAL
(a) Check the ABS speed sensor signal Diagnosis System.
