Sunroof / Moonroof Switch: Testing and Inspection

SLIDING ROOF: SLIDING ROOF SWITCH ASSEMBLY: INSPECTION

SLIDING ROOF: SLIDING ROOF SWITCH ASSEMBLY: INSPECTION

1. INSPECT MAP LIGHT ASSEMBLY

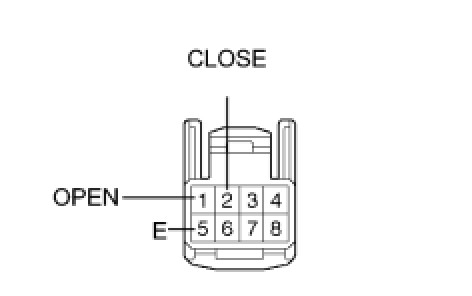

(a) Measure the resistance of the switch.

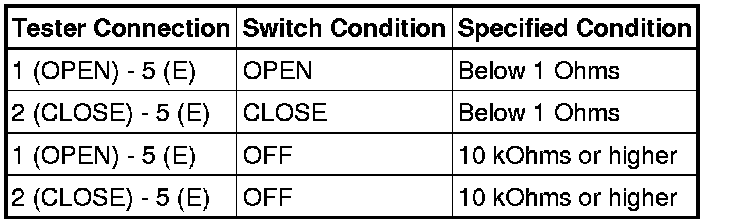

Standard resistance:





If the result is not as specified, replace the map light assembly.
