Installation

SLIDING ROOF: SLIDING ROOF SWITCH ASSEMBLY: INSTALLATION

SLIDING ROOF: SLIDING ROOF SWITCH ASSEMBLY: INSTALLATION





1. INSTALL MAP LIGHT ASSEMBLY
(a) Connect the map light connector.

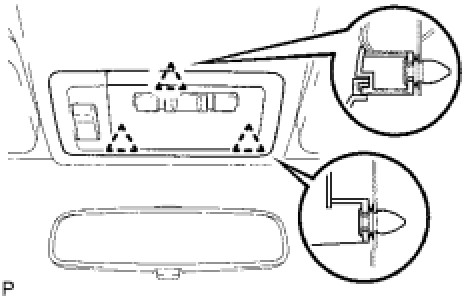

(b) Attach the 3 clips to install the light.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. PERFORM INITIALIZATION
(a) Perform initialization Testing and Inspection.
NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

4. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
