Power Door Lock Switch: Testing and Inspection

DOOR LOCK: DOOR CONTROL SWITCH: INSPECTION

DOOR LOCK: DOOR CONTROL SWITCH: INSPECTION

1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH





(a) Inspect door control switch.
(1) Measure the resistance of the door control switch.

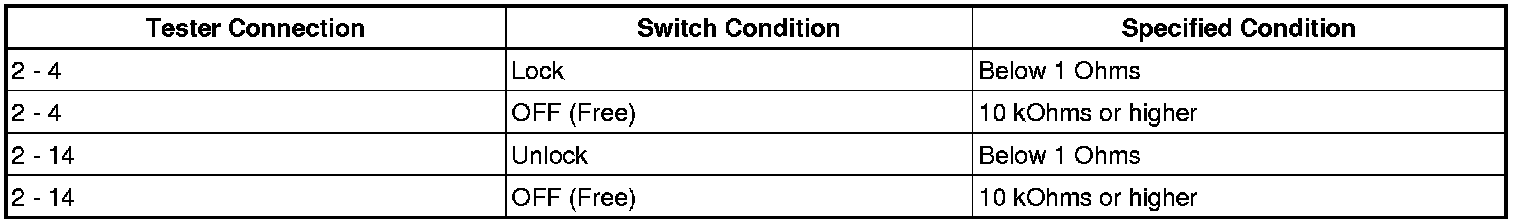

Standard resistance:





2. INSPECT DOOR CONTROL SWITCH





(a) Inspect door control switch.
(1) Measure the resistance according to the value(s) in the table below.

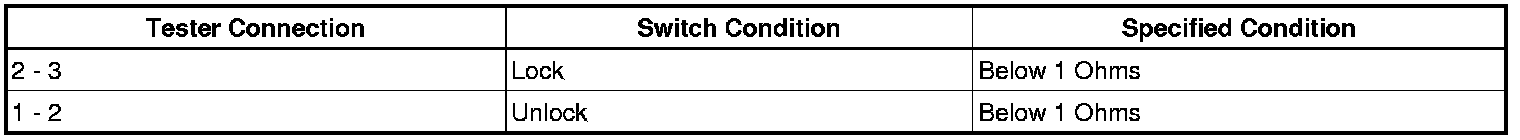

Standard resistance:
