INTERIOR: FUEL LID LOCK CONTROL: INSTALLATION

INTERIOR: FUEL LID LOCK CONTROL: INSTALLATION

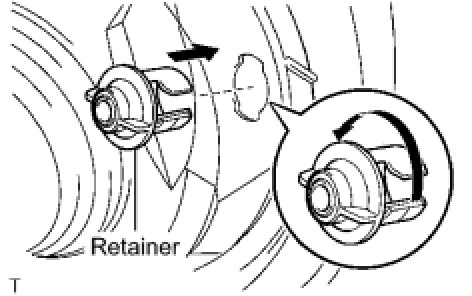

1. INSTALL FUEL FILLER OPENING LID LOCK RETAINER
(a) Install the lock retainer as shown in the illustration.
2. INSTALL FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY





(a) Install the cable and turn it clockwise, as shown in the illustration.

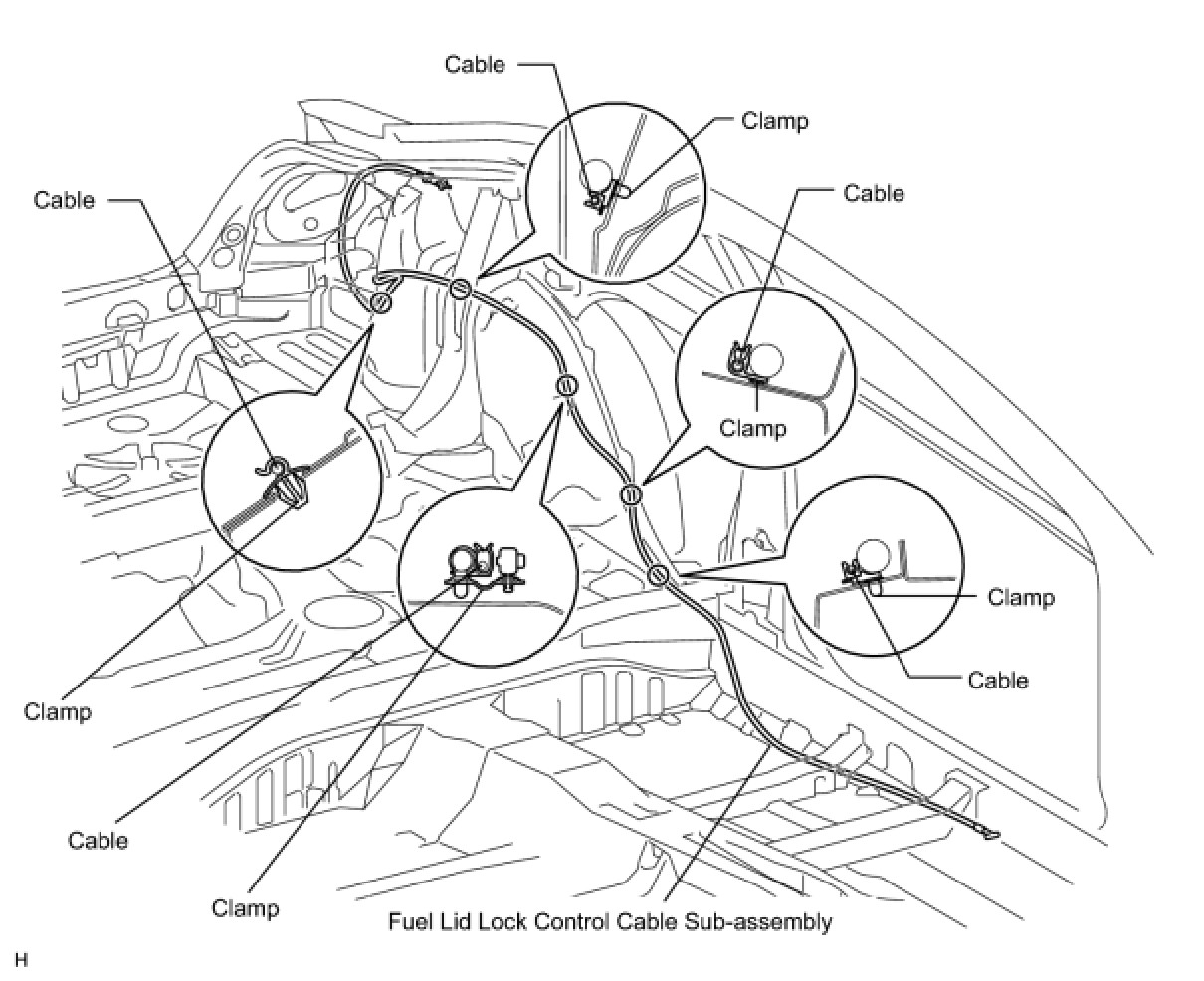

(b) Install the cable to the clamps as shown in the illustration.





(c) Install the floor mat.
3. INSTALL NO. 1 SIDE TRIM ASSEMBLY LH Installation
4. INSTALL FRONT DOOR SCUFF PLATE LH Installation
5. INSTALL REAR SEATBACK ASSEMBLY LH Installation
6. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
7. INSTALL REAR NO. 1 FLOOR BOARD Installation
8. INSTALL NO. 1 DECK BOARD Installation
9. INSTALL DECK BOARD SUB-ASSEMBLY
10. INSTALL TONNEAU COVER ASSEMBLY
11. INSTALL FRONT SEAT ASSEMBLY LH
(a) Install the front seat Installation.

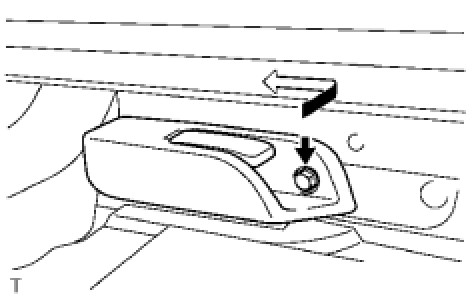

12. INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY





(a) Install the cable.
(b) Install the cover in the direction indicated by arrow mark.
(c) Install the screw.
