Component Tests and General Diagnostics

MIRROR: POWER MIRROR CONTROL SYSTEM: INSPECTION

MIRROR: POWER MIRROR CONTROL SYSTEM: INSPECTION

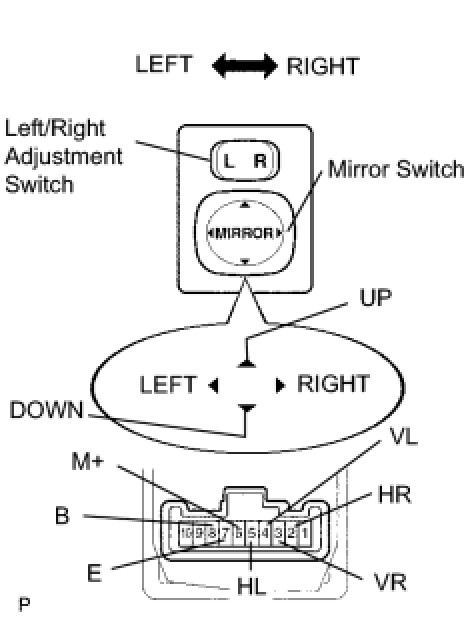

1. INSPECT OUTER MIRROR SWITCH ASSEMBLY

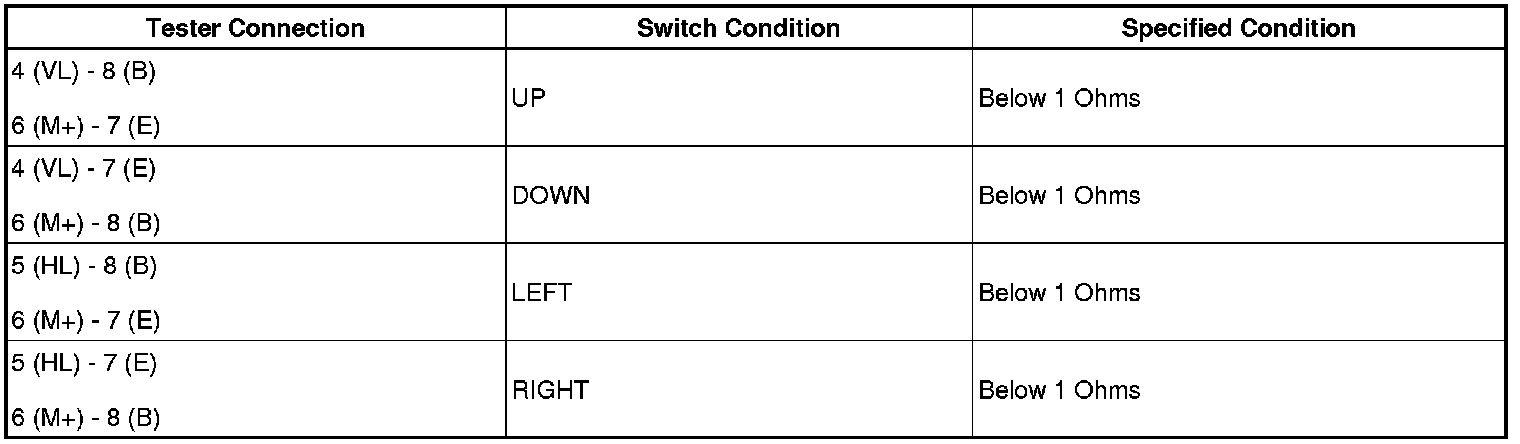

(a) Select L on the left/right adjustment switch:
Measure the resistance of the switch.
Standard resistance:





If the result is not as specified, replace the switch assembly.

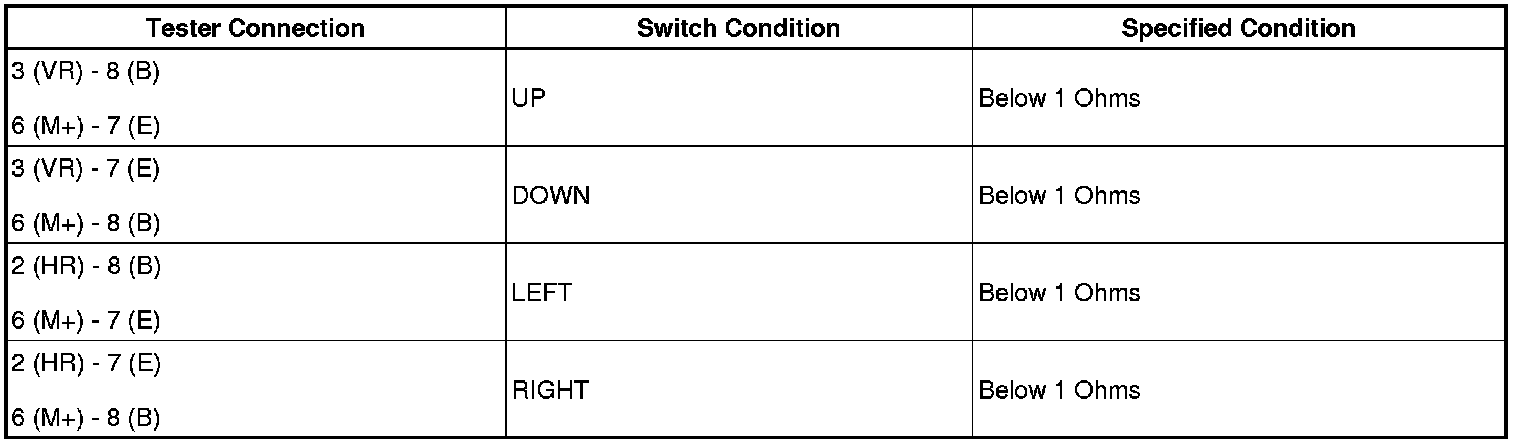

(b) Select R on the left/right adjustment switch: Measure the resistance of the switch.
Standard resistance:





If the result is not as specified, replace the switch assembly.

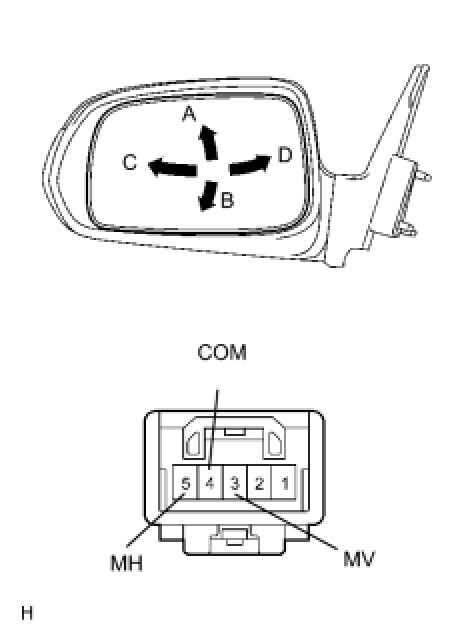

2. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH
(a) Disconnect the mirror connector.

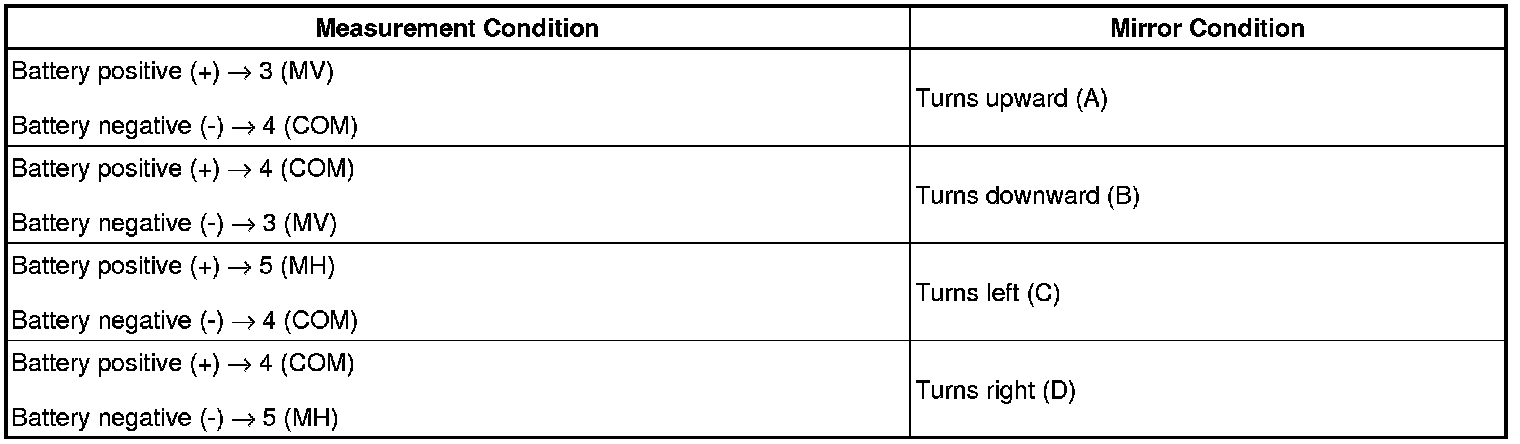

(b) Apply battery voltage to the mirror and check the operation of the mirror.
OK:





If the result is not as specified, replace the mirror assembly.

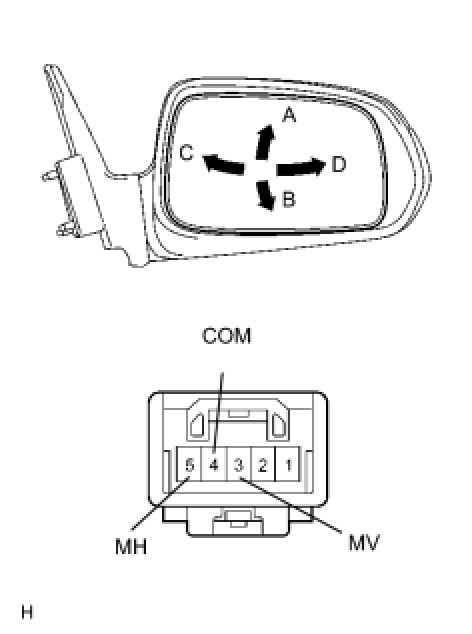

3. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH
(a) Disconnect the mirror connector.
(b) Apply battery voltage to the mirror and check the operation of the mirror.
OK:





If the result is not as specified, replace the mirror assembly.
