DOOR LOCK: FRONT DOOR LOCK: INSPECTION

DOOR LOCK: FRONT DOOR LOCK: INSPECTION

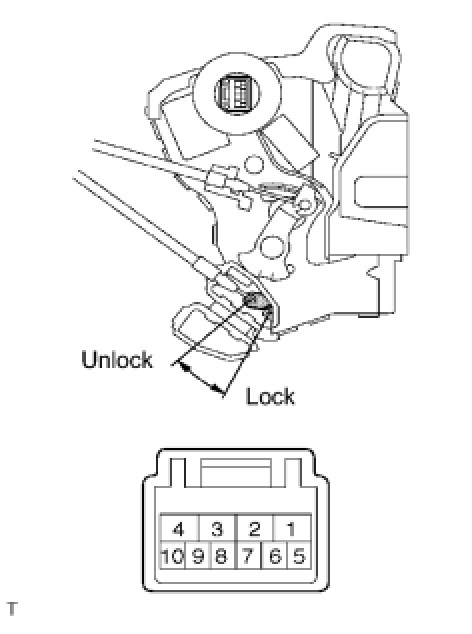

1. INSPECT FRONT DOOR LOCK ASSEMBLY LH

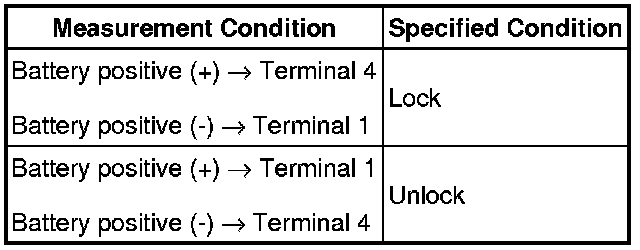

(a) Apply battery voltage to the door lock and check operation of the door lock motor.
OK:





If the result is not as specified, replace the door lock assembly.

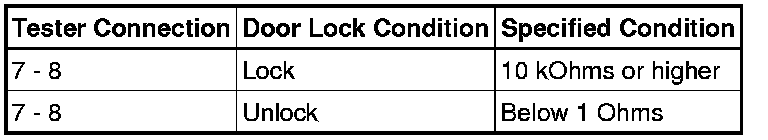

(b) Measure the resistance of the lock detection switch.
Standard resistance:





If the result is not as specified, replace the door lock assembly.

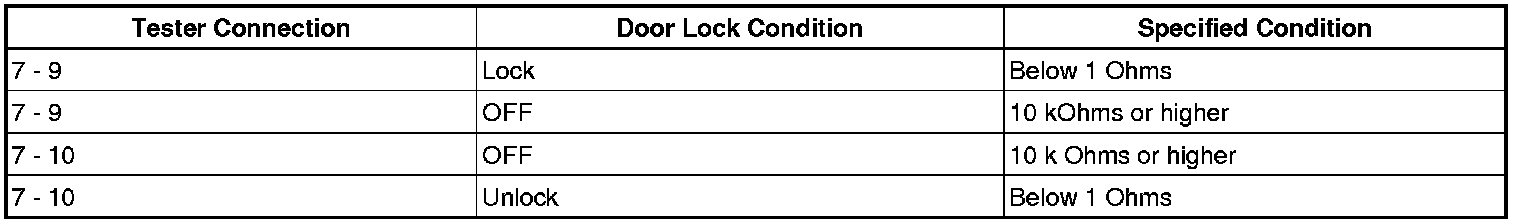

(c) Measure the resistance of the door lock and unlock switch.
Standard resistance:





If the result is not as specified, replace the door lock assembly.

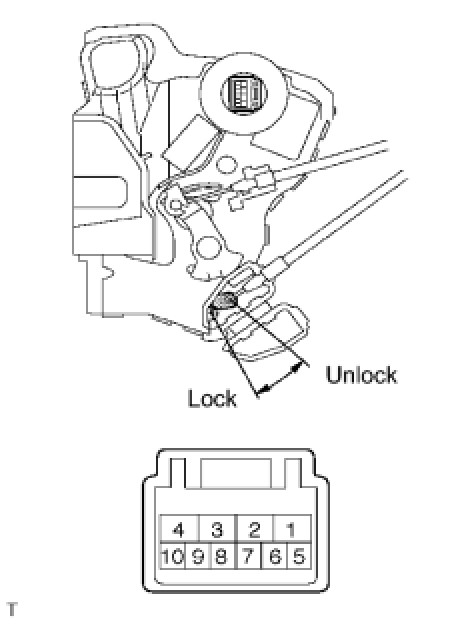

2. INSPECT FRONT DOOR LOCK ASSEMBLY RH





(a) Apply battery voltage to the door lock and check operation of the door lock motor.
OK:





If the result is not as specified, replace the door lock assembly.

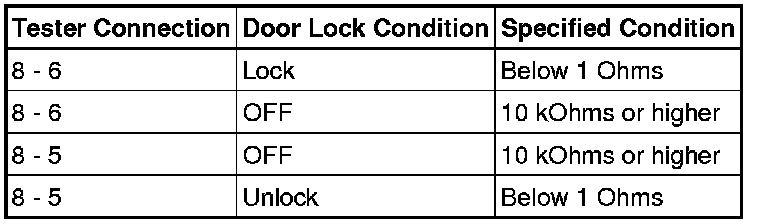

(b) Measure the resistance of the door lock and unlock switch.
Standard resistance:





If the result is not as specified, replace the door lock assembly.
