Installation









INTERIOR: FRONT FLOOR FOOTREST: INSTALLATION

INTERIOR: FRONT FLOOR FOOTREST: INSTALLATION

1. INSTALL FRONT FLOOR FOOTREST

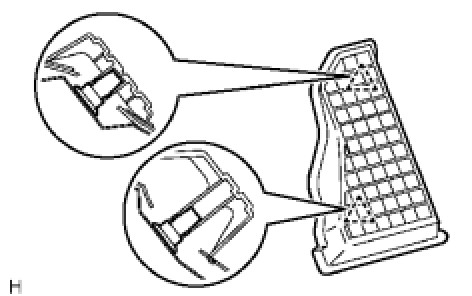

(a) Attach the 2 clips to install the footrest.
