Home >> Scion >> 2009 >> tC L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Dashboard / Instrument Panel >> Service and Repair >> Lower Instrument Panel >> Components

Components

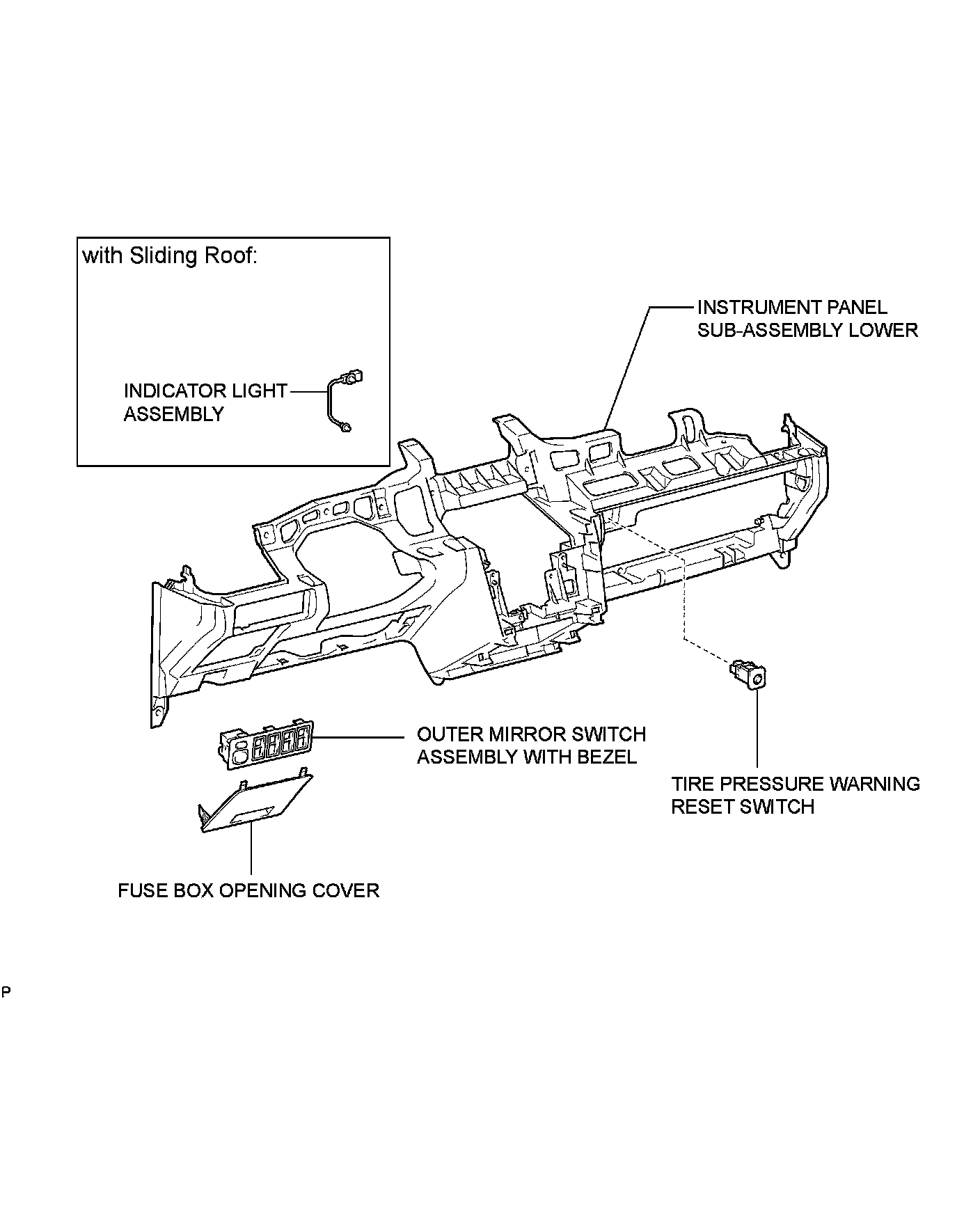

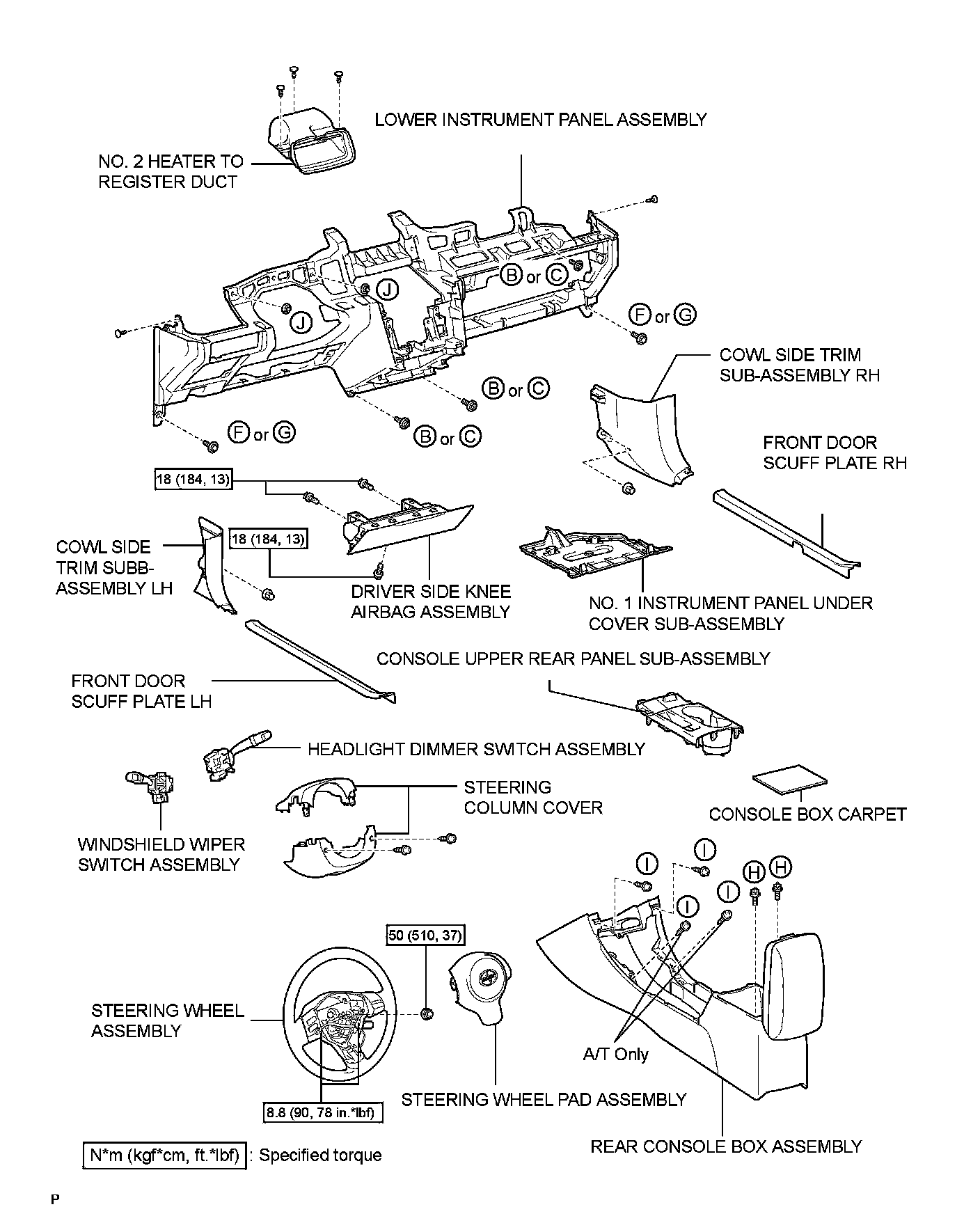

INSTRUMENT PANEL: LOWER INSTRUMENT PANEL: COMPONENTS

INSTRUMENT PANEL: LOWER INSTRUMENT PANEL: COMPONENTS
