Removal

EXTERIOR: NAME PLATE: REMOVAL

EXTERIOR: NAME PLATE: REMOVAL
NOTICE: Do not heat the vehicle body, emblem and name plate excessively.
HINT: When removing the emblem and name plate, heat the vehicle body, emblem and name plate using a heat light.

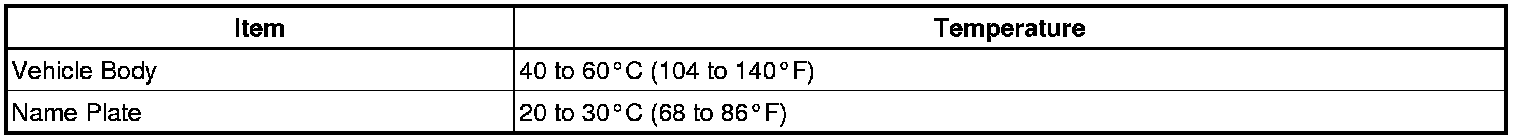

Standard heating temperature:





1. REMOVE NO. 5 BACK DOOR NAME PLATE





(a) Put protective tape around the name plate.
(b) Insert a piano wire between the vehicle body and name plate.
(c) Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
(d) Pull the piano wire and scrape off the double-sided tape that holds the name plate to the vehicle body.
NOTICE:
- If reusing the name plate, take care not to damage the name plate.
- Be careful not to damage the vehicle body.
