Installation

EXTERIOR: NAME PLATE: INSTALLATION

EXTERIOR: NAME PLATE: INSTALLATION
NOTICE: Do not heat the vehicle body, emblem and name plate excessively.
HINT: When installing the emblem and name plate, heat the vehicle body, emblem and name plate using a heat light.

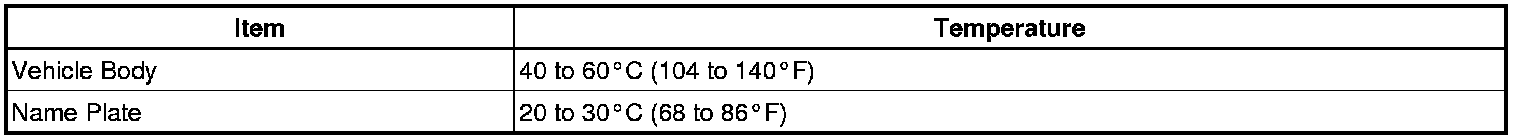

Standard heating temperature:





1. INSTALL NO. 5 BACK DOOR NAME PLATE
(a) Clean the vehicle body surface.
(1) Using a heat light, heat the vehicle body surface.
(2) Remove the double-sided tape from the vehicle body.
(3) Wipe off any tape adhesive residue with cleaner.
(b) If reusing the name plate:
Clean the name plate.
(1) Using a heat light, heat the name plate.
(2) Remove the double-sided tape from the name plate.
(3) Wipe off any tape adhesive residue with cleaner.
(4) Apply new double-sided tape to the emblem.
(c) Install the name plate.
(1) Using a heat light, heat the vehicle body and name plate.
(2) Remove the peeling paper from the face of the name plate.
HINT: After removing the peeling paper, keep the exposed adhesive free from foreign matter.

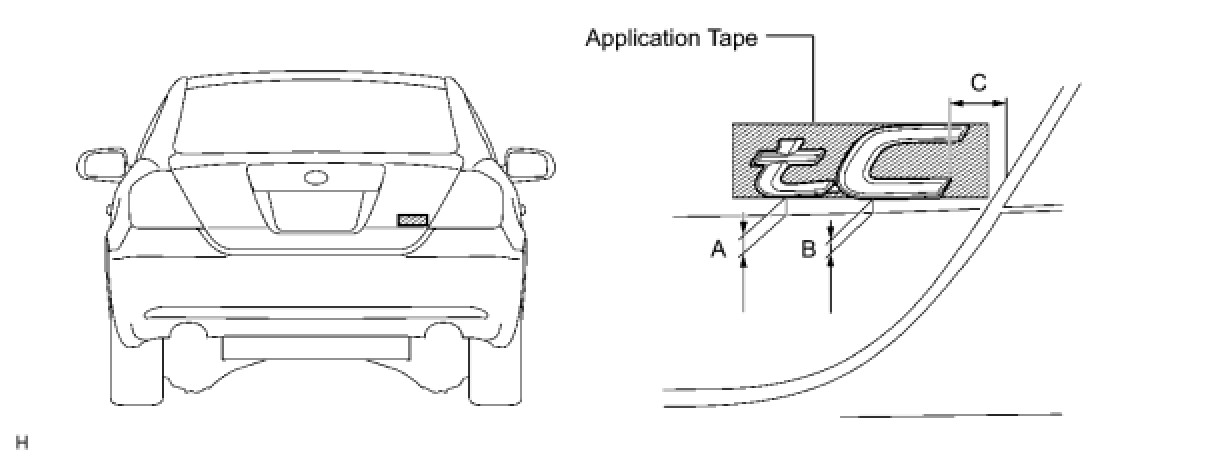

(3) Install the name plate.
NOTICE: Install the name plate exactly according to the specifications below.

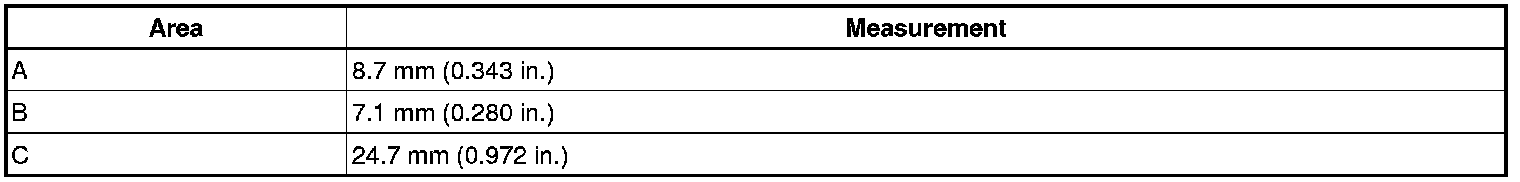

Standard measurement:
