ENGINE HOOD / DOOR: BACK DOOR SUPPORT: REMOVAL

ENGINE HOOD / DOOR: BACK DOOR SUPPORT: REMOVAL
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.





1. REMOVE BACK DOOR STAY ASSEMBLY LH

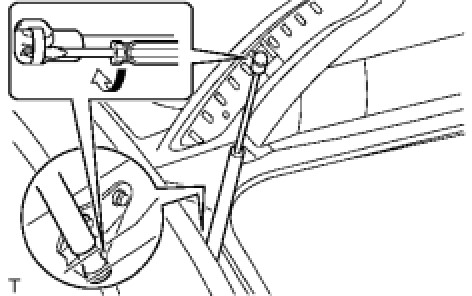

(a) Using a screwdriver, remove the 2 stop rings and stay.
HINT: Remove the door stay while supporting the back door with your free hand.
