Disposal

ENGINE HOOD / DOOR: BACK DOOR SUPPORT: DISPOSAL

ENGINE HOOD / DOOR: BACK DOOR SUPPORT: DISPOSAL
HINT: Use the same procedures for the LH side and RH side.

1. DISPOSE OF BACK DOOR STAY ASSEMBLY LH





(a) Horizontally fix the stay in a vise with the piston rod pulled out.
(b) Using a metal saw, gradually cut any area between A and B to release the gas.

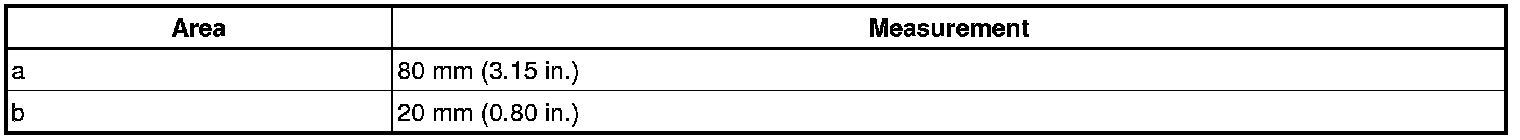

Standard measurement:





CAUTION: As metal debris may be blown outward by the gas, you must:
- Wear protective glasses.
- Cover the area being cut.
NOTICE: The gas is colorless, odorless and harmless.
